VANTAGE CONTROLS

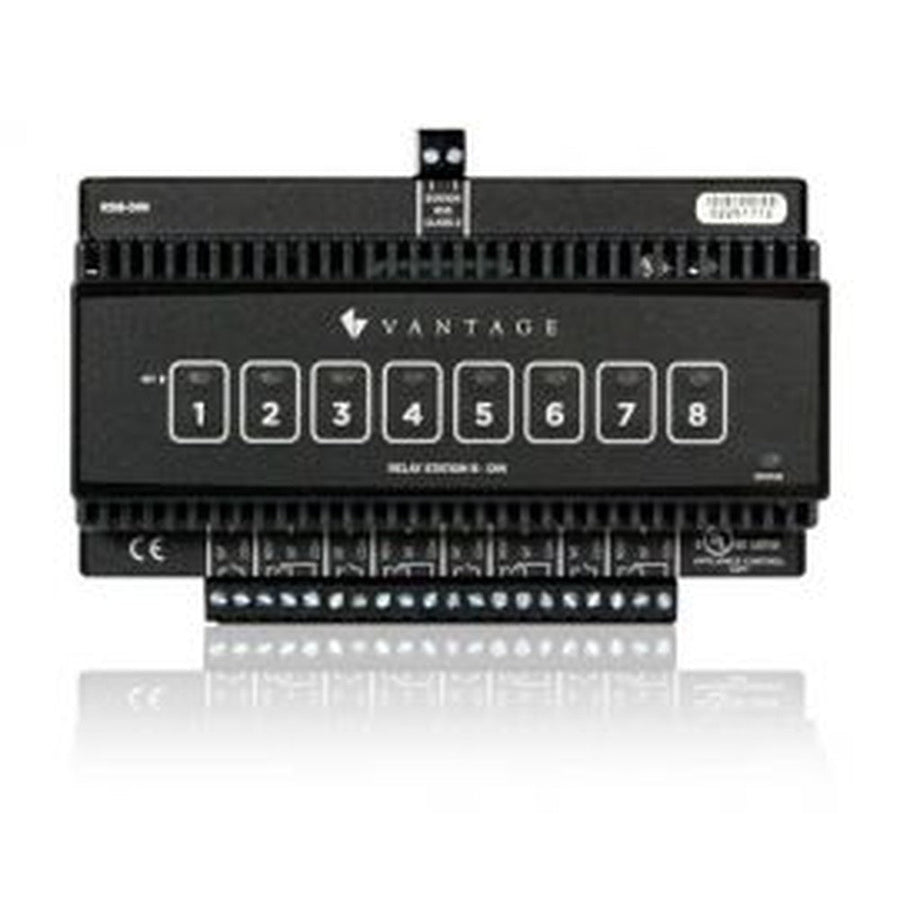

Vantage RS8-DIN DIN 8 Channel 10 Amp Relay Station
VC-RS8-DIN
In stock
The Vantage Relay Station - DIN (RS8-DIN) provides relay functionality for up to eight individual loads, featuring four SPST and four SPDT relays for hardware interlock installations. Each relay handles up to ten amps of either high or low voltage current, and actuator buttons allow the connected relays to be manually toggled. Relays latch in place to retain their last state in the event of a power interrupt, and the station clips easily onto standard 35mm DIN rails.
| Model | RS8-DIN |
| Dimensions (HWD) | 3.4" × 6.18" × 2.28" (86mm × 157mm × 58mm) |
| Weight | 14.2oz (403g) |
| Mounting | 35 mm DIN Rail (EN 50 022: 1977) |
| Number of Loads | 8 |
| Relay Actuators | 8 |
| Load Types ODD (loads 1, 3, 5, 7) | Incandescent, Cold Cathode, HID, Fluorescent, Resistive, Constant-Speed Motors, etc |
| Load Types EVEN (loads 2, 4, 6, 8) | Resistive, Constant-Speed Motors, etc (Lighting loads not recommended) |
| Maximum Current @ Relay | 10A |
| Maximum Voltage @ Relay | 277VAC / 440VDC |
| Minimum Voltage @ Relay | 0VAC / 0VDC |
| LED Indicators | Status and Load State |
| Lightning Surge Protection High Voltage | IEEE C62.41 (6000V 3000A) |
| Lightning Surge Protection Low Voltage | ITU-T K.20 |
| Station Bus Connections | 24V / 36V Station Bus |
| Station Equivalent InFusion | 0.7W on IC-24 / 1.1W on IC-36 |
| Station Equivalent Q-System | 1 Station on QLink Main Controller |
| Ambient Operating Temperature | 0–40°C (32–104°F) |
| Ambient Operating Humidity | 5–95% non-condensing |
| System Compatibility | InFusion, QLink |
| CE, UL and CUL Listed | Yes |
| Warranty | 5-year limited (Vantage) |
