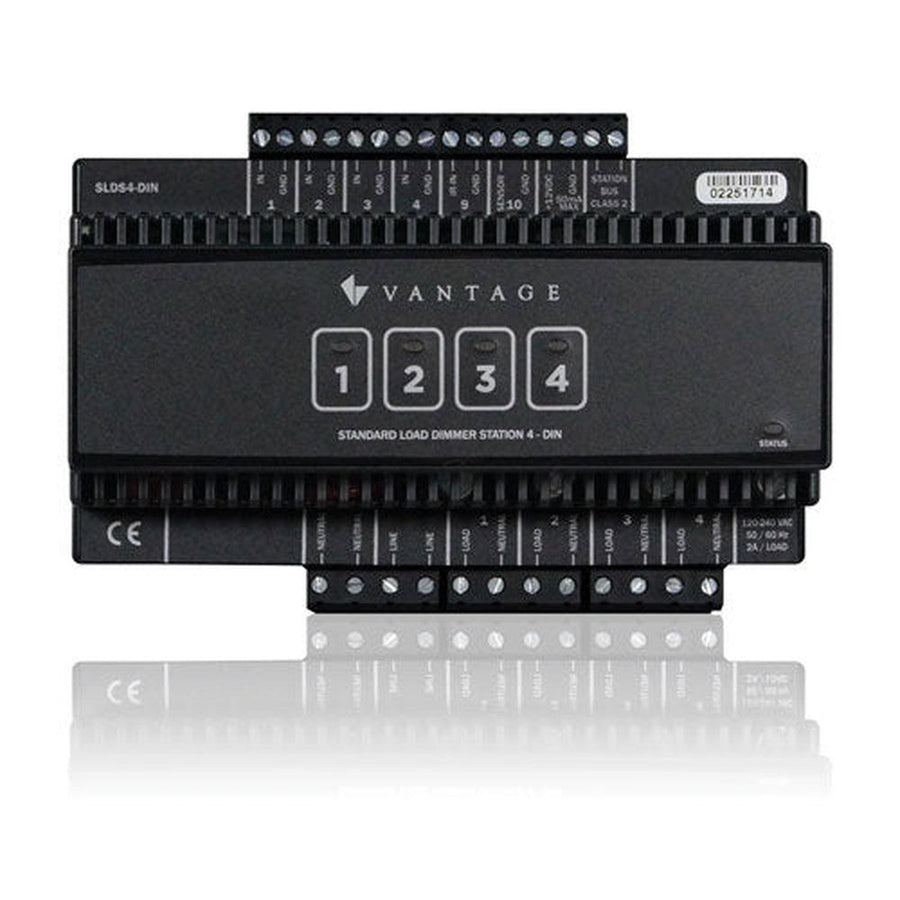

VC-SLDS4-DIN
• Controls the dimming for up to four 480w @ 240v or four 240w @ 120v
• Features six contact inputs for control of additional auxiliary devices
• Acts as an independent dimmer or coordinates with the Vantage system to
create elegant lighting scenes
• Dims incandescent, and magnetic loads
• Displays the operating status with LED indicators
• Clips easily on standard 35 mm DIN rails
• Executes single or multiple events from single trigger
• Communicates with the master through a two-wire bus or by a small
connector on the side of the unit
| SLDS-DIN | ||||||
| Max Watts per Load 640W @ 240V Attention: Not all channels can be used at max. load. See load configurations below | ||||||
| LOAD CONFIGURATIONS | Load 1. MAX | Load 2. MAX | Load 3. MAX | Load 4. MAX | ||
| Normal Loads 240VAC | 480W | 480W | 480W | 480 | ||
| Expanded Loads 240VAC | 640W | 640W | 640W | Do Not Use! | ||
| Attention: Do not use all channels at max. load | ||||||
| For proper heat dissipation: | ||||||
| Expanded loads 1 thruogh 4 must not exceed 1920W @ 240V | ||||||
| The Do Not Use! loads may be used if combined loads 1 through 4 do not exceed the 1920W limits and individual loads do not exceed the limits in the table. | ||||||
Vantage Controls products may only be purchased by Certified Installers. If you would like more information about becoming a Certified Installer or would like pricing please contact sales@techstyle.co.nz
