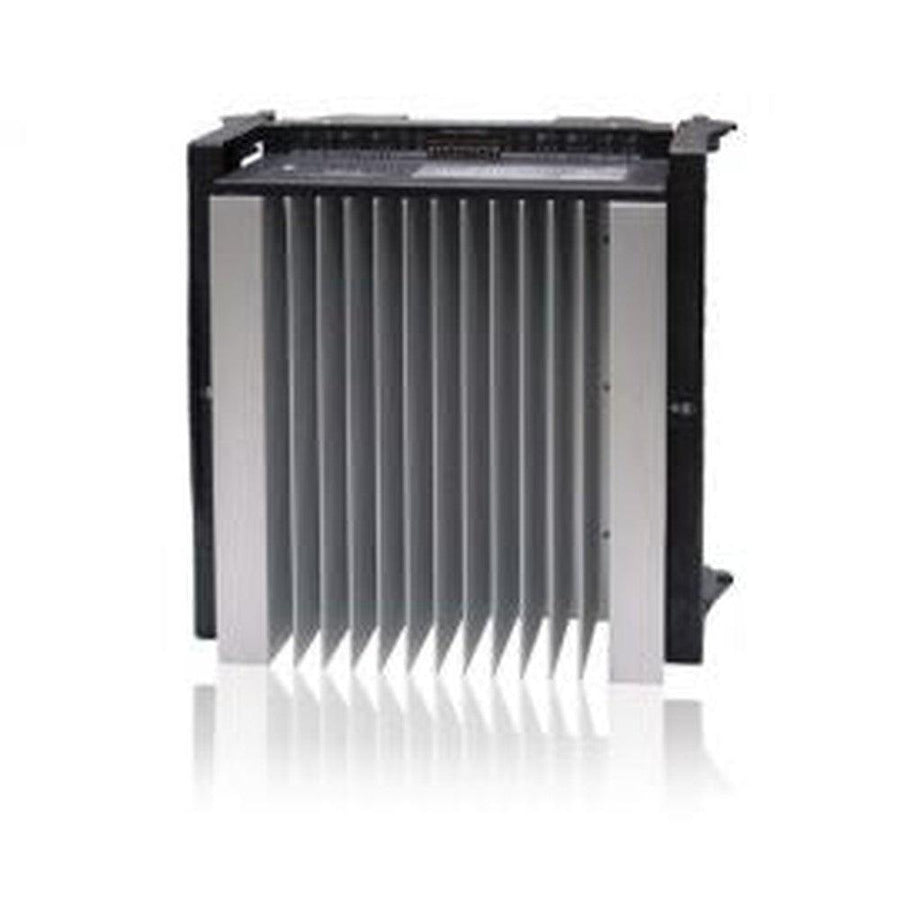

Vantage SDM12-EM InFusion Standard Dimming Module (12 Channel)
VC-SDM12-EM
Backorder
The InFusion Standard Dimming Module (SDM12-EM) is a key component of Vantage's centralized lighting control. Mounted in a Main or Secondary Power Enclosure (IMPE or ISPE), it supports control of up to 12 standard (forward phase) loads with up to four line feeds and up to 64 total amps of load. Each dimming channel is programmable to match the dimming curve of the lighting load and can function as a dimmer or a relay, with current sensing built in for energy management applications.
| Model | SDM12-EM |
| Dimensions (HWD) | 7.63" × 9.44" × 3.75" (194mm × 240mm × 95mm) |
| Voltage | 120V–277V ~ 60/50Hz |
| Maximum Amperage per Module | 64A (7680W@120V); 64A (17,728W@277V) |
| Maximum Individual Load Amperage | 16A (1920W @ 120V); 16A (4432W@277V) |
| Maximum Transformer Load | 1000VA@120V; 2300VA@277V |
| Maximum Individual LED Load | 3.2A (384W@120V); 3.2A (886W@277V) |
| Minimum Load | 5W@120V / 12W@277V |
| Loads | 12 |
| Maximum Line Feeds | 4 @ 20A (Maximum) breakers |
| Manual Override | Load by Load selectable |
| Load Types | Incandescent, LED, Fluorescent, HID, Cold cathode, Magnetic Low Voltage, Constant speed motors |
| Built-in Protection | Fuse protection per line, MOV surge, thermal shutdown, short circuit, snubber circuit |
| Chokes | 12 EMI Suppression |
| Cooling | Convection, 36" front clearance required |
| Lightning Surge Protection High Voltage | IEEE C62.41; (6000V & 3000A) |
| Lightning Surge Protection Low Voltage | ITU-T K.20 |
| Status Indicators | Line Power, Fuse Status, Load Power, Over Temp, Microprocessor Status, Manual Override, Overload |
| SCCR Rating | 65KA |
| UL and CUL Listed | Yes |
| Weight | 5.7 lbs (2.6 kg) |
| Ambient Operating Temperature | 32–104°F (0–40°C) |
| Ambient Operating Humidity | 5–95% non-condensing |
| System Compatibility | InFusion |
| Warranty | 5-year limited (Vantage) |
