VANTAGE CONTROLS

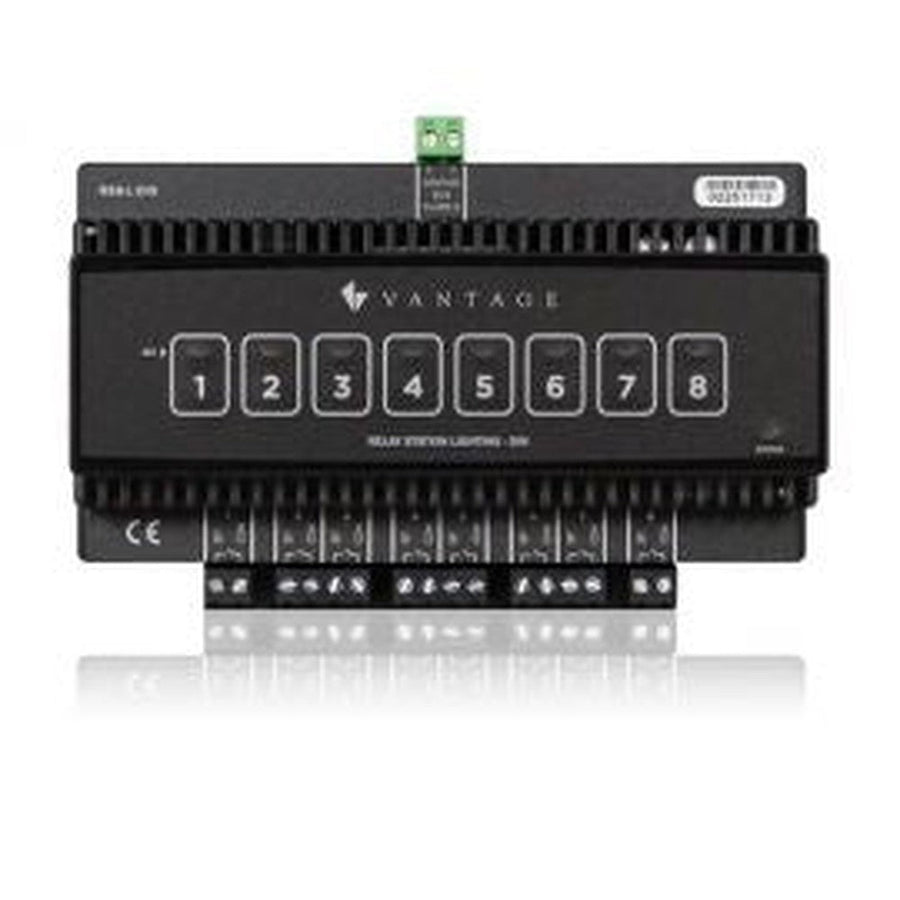

Vantage RS8-L-DIN Relay Station Lighting - DIN
VC-RS8-L-DIN
Backorder
The Vantage Relay Station Lighting - DIN (RS8-L-DIN) is designed to control lights and provides eight isolated latching relay channels, all rated for lighting type loads. It accepts voltage from 0 to 277 volts and up to 10 amps at each load, with single-pole, single-throw relays offering a set of eight latching contacts. Actuator buttons allow each relay to be manually toggled, relays latch to retain their last state on power interrupt, and the station clips easily onto standard 35mm DIN rails.
| Model | RS8-L-DIN |
| Dimensions (HWD) | 86mm × 157mm × 60mm (3.4" × 6.18" × 2.375") |
| Weight | 14.2oz (403g) |
| Mounting | 35 m DIN Rail (EN 50 022: 1977) |
| Number of Loads | 8 |
| Relay Actuators | 8 |
| Load Types ODD (loads 1, 3, 5, 7) | Incandescent, Cold Cathode, HID, Fluorescent, Resistive, Constant-Speed Motors, etc |
| Load Types EVEN (loads 2, 4, 6, 8) | Resistive, Constant-Speed Motors, etc (Lighting loads not recommended) |
| Maximum Current @ Relay | 10A |
| Maximum Voltage @ Relay | 277VAC / 440VDC |
| Minimum Voltage @ Relay | 0VAC / 0VDC |
| LED Indicators | Status and Load State |
| Lightning Surge Protection High-Voltage | IEEE C62.41 (6000V 3000A) |
| Lightning Surge Protection Low-Voltage | ITU-T K.20 |
| Station Bus Connections | 24V / 36V Station Bus |
| Station Equivalent InFusion | 0.7W on IC-24 / 1.1W on IC-36 |
| Station Equivalent Q-System | 1 Station on QLink Main Controller |
| Ambient Operating Temperature | 0–40°C (32–104°F) |
| Ambient Operating Humidity | 5–95% non-condensing |
| System Compatibility | InFusion |
| Certifications | UKCA, CE, FCC, UL, cUL, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3 |
| Warranty | 5-year limited (Vantage) |
