VANTAGE CONTROLS

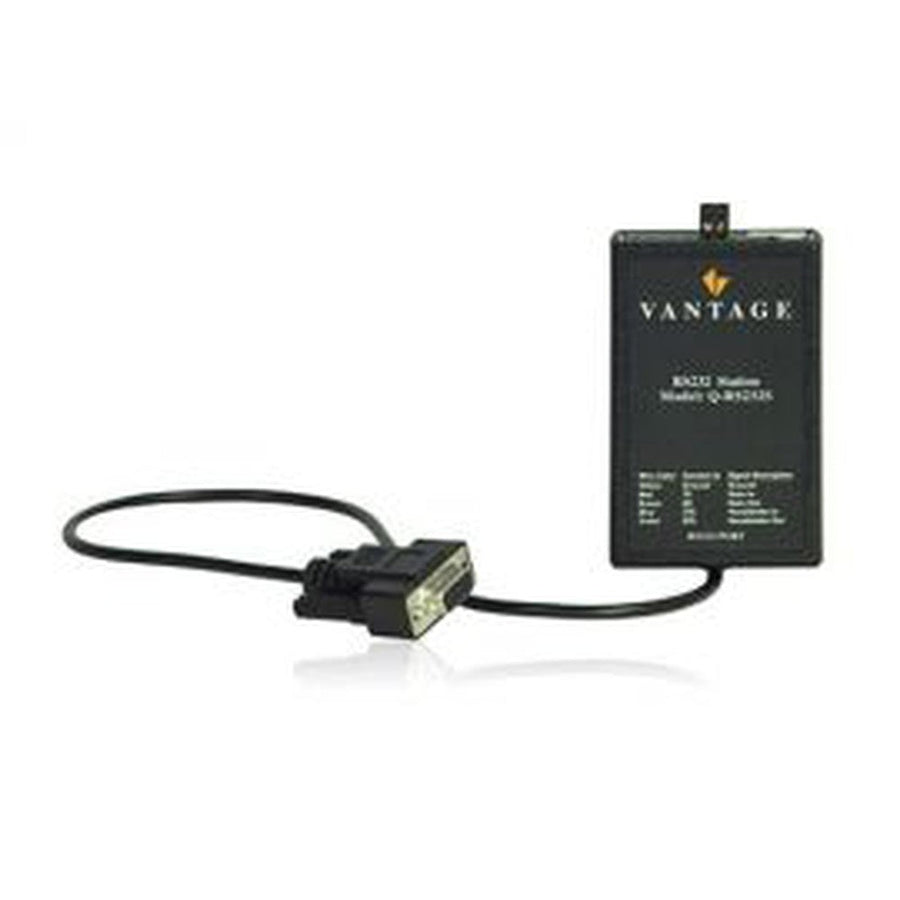

RS-232 Communication Station
VC-Q-RS232S
In stock
The RS-232 Communication Station interfaces a Vantage system with a large number of third-party products, including audio/video equipment, shades and security systems. It features full two-way communication with devices that use ASCII or Hexadecimal codes, connecting to a Vantage system via the two-wire station bus for complete, dependable control. The compact station can be discreetly mounted inside an enclosure or behind equipment, and is compatible with InFusion or QLink systems.
| Model | Q-RS232S |
| Dimensions (HWD) | 97mm x 61mm x 22mm (3.8" x 2.4" x .88") |
| Weight | 8.2oz (119g) |
| Ambient Operating Humidity | 5-95% non-condensing |
| Ambient Operating Temperature | 32-95°F (0-35°C) |
| Finish | Black |
| LED Indicators | Data Out (TX), Data In (RX), Handshake Out (RTS), Handshake In (CTS), Diagnostic (Configured Status) |
| Memory Buffer | 64 KB |
| Station Equivalent InFusion | 0.75W on IC-24 / 0.75W on IC-36 |
| Station Equivalent QLink | Counts as 2 Stations on Main Controller |
| Station Bus Connections | 24V / 36V Station Bus |
| Station Bus Wiring Minimum | 2 conductor, 16 AWG stranded, non-shielded twisted pair, 30 pF/foot max, UL rated CL2 |
| Station Bus Topology | Any combination of daisy chain or star or branch or home run |
| System Compatibility | InFusion, QLink |
| Warranty | 5-year limited (Vantage) |
