VANTAGE CONTROLS

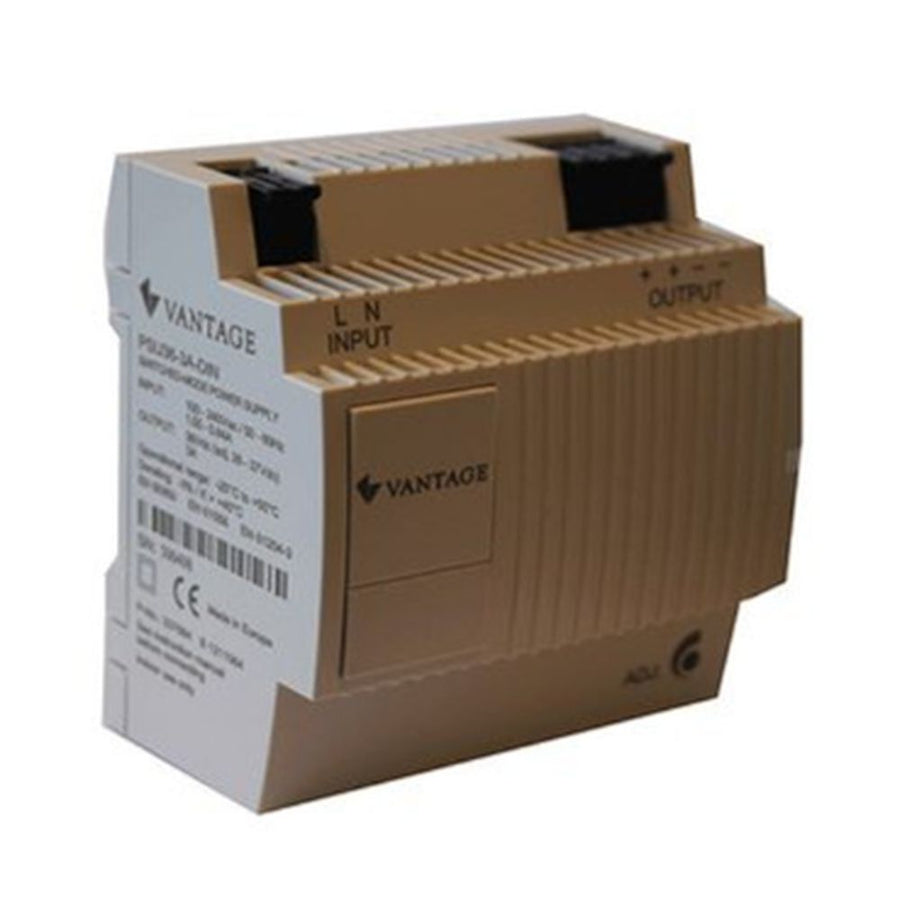

Vantage DIN Controller Power Supply, 36V 130W
VC-PSU36-DIN
Backorder
The PSU36-DIN is a 36VDC DIN-rail power supply tested against stringent power standards to produce quiet, reliable power for the Vantage DIN Controller. It mounts on standard 35mm DIN rail in any standard DIN enclosure compatible with the maximum power dissipated and delivers up to 130W. The DIN Controller must only be powered with a Vantage-supplied power supply such as this model.
| Model | PSU36-DIN |
| Dimensions (H×W×D) | 4.375" × 7.5" × 1.9" (111mm × 191mm × 48mm) |
| Weight | 1.04 kg (2.3 lbs.) |
| Mounting | 35 mm DIN Rail (EN 50 022: 1977) |
| Input Power Requirement | AC 100-240V-2.8A 50/60 Hz |
| Output Power | 36V DC 3.5A 130W Max |
| Ambient Operating Temperature | 0-40°C / 32-104°F |
| Ambient Operating Humidity | 5-95% non-condensing |
| Cooling | Convection |
| CE Certified | Yes |
| Warranty | 5-year limited (Vantage) |
