VANTAGE CONTROLS

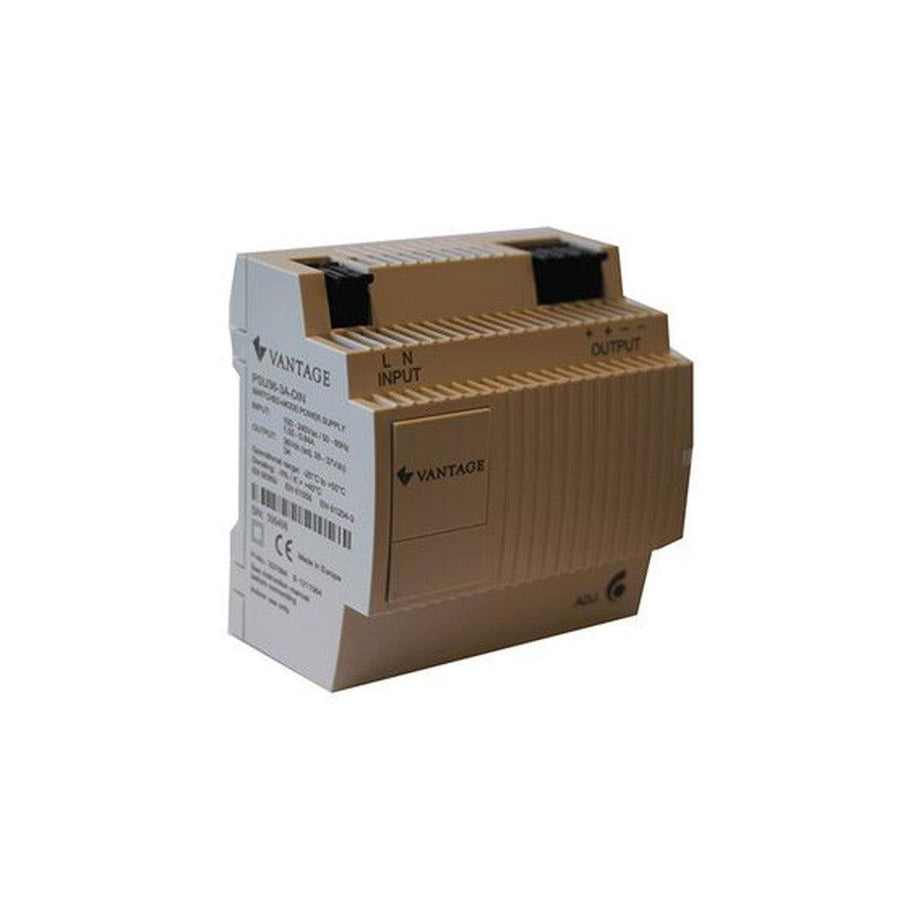

Vantage 36VDC Controller Power Supply, 3A
VC-PSU36-3A-DIN
In stock
The PSU36-3A-DIN is a single-phase, primary switched 36VDC power supply in a DIN-rail plastic housing. It delivers a 3A, 108W output with constant-current overload protection and a green DC OK indicator, and is cooled by natural convection. The unit complies with CE safety and EMC standards.
| Model | PSU36-3A-DIN |
| Type | Single-phase, primary switched power supply |
| Size (W×H×D) | 90 × 89 × 59 mm |
| Weight | 0.31 kg |
| Mounting | DIN Rail |
| Case | Plastic housing |
| Protection Index | IP 20 |
| Input Voltage (nominal) | 100…240Vac (range 90…264Vac) |
| Input Current | 1.55A / 0.84A (100Vac / 240Vac) |
| Output Voltage | 28…37Vdc, initial set voltage 36Vdc ±1% |
| Output Current | 3A |
| Output Power | 108W |
| Overload Protection | Constant current, typ. 1.1 × nominal current |
| Ripple and Noise | < 100mVpp (measured at 20MHz bandwidth) |
| Efficiency | typ. 89% |
| Isolation prim. – sek. | 4.2KV |
| Ambient Temperature | -10°C to +55°C (Derating: -2.5%/K > +45°C) |
| Cooling | Natural convection |
| Signaling | DC OK, green LED |
| Compliance | CE; Safety EN 60950; EMC EN 61204-3 |
| Warranty | 5-year limited (Vantage) |
