VANTAGE CONTROLS

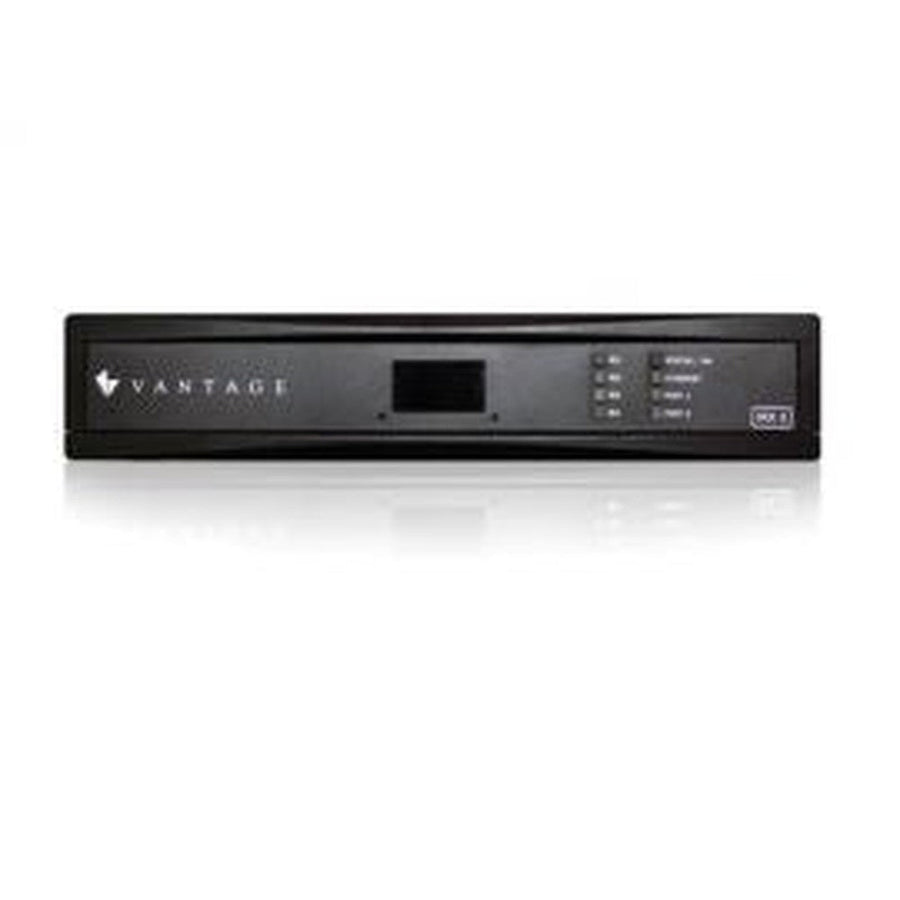

Infrared Emitter Station II
VC-IRX-II
In stock
The Infrared Emitter Station II (IRX II) is Vantage’s integration and A/V control product that brings a home theatre or boardroom into a complete automation system, controlling virtually any A/V device through previously programmed keypads, remote controls, touchscreens and time controls. It handles simple to complex installations using IR and RS-232 with flow control, and combines the Vantage Ethernet Bus and Station Bus so it can adapt to any location, device interface or wiring infrastructure. A large library of IR and RS-232 codes simplifies integration of new products.
| Model | IRX II |
| Dimensions (HWD) | 43mm x 216mm x 156mm (1.7" x 8.5" x 6.125") |
| Weight | 1.1 lbs /499 g |
| Ambient Operating Humidity | 5–95% non-condensing |
| Ambient Operating Temperature | 0–35° C (32–95° F) |
| Contact Inputs | 4 |
| Cooling | Convection |
| External 12V Power Terminals | 500mA, combined total |
| External Inputs for Vantage, Xantech or Niles Compatible IR Receivers | 2 |
| Internal IR Receiver | 1 |
| IR Emitter Outputs | Mono 3.5mm mini plug, 4 Channels/Piggy-Back allowing up to 8 Channels |
| Certification | CE Certified Yes (EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3) |
| Low Voltage SPST Relays (One Amp Max. Each) | 2 |
| Mounting | Rack-mount or wall-mount |
| Power Requirements | 120 or 240 VAC; 15 Amps; 50/60 Hz; Output 12 VDC @ 1.5 Amps |
| RS-232 Ports | 2 |
| Ethernet Bus Ports | 1 |
| Station Bus Ports | 1 |
| Station Bus Voltage | 24V / 36V Station Bus |
| Station Equivalent InFusion | 0.36W on IC-24 / 0.54W on IC-36 |
| Status LEDs | 10 |
| Station Bus Lightning / Surge Protection | Low Voltage ITU-T K.20 |
| Ethernet Bus | Standard RJ45 TCP/IP connection (Auto crossover detection) |
| Station Bus Wiring Minimum | 2 conductor, 16 AWG stranded, non-shielded twisted pair, 30 pF/foot max, UL rated CL2 |
| Station Bus Topology | Any combination of daisy chain or star or branch or home run |
| System Compatibility | InFusion |
| Warranty | 5-year limited (Vantage) |
