HOME AUTOMATIONVANTAGE CONTROLS

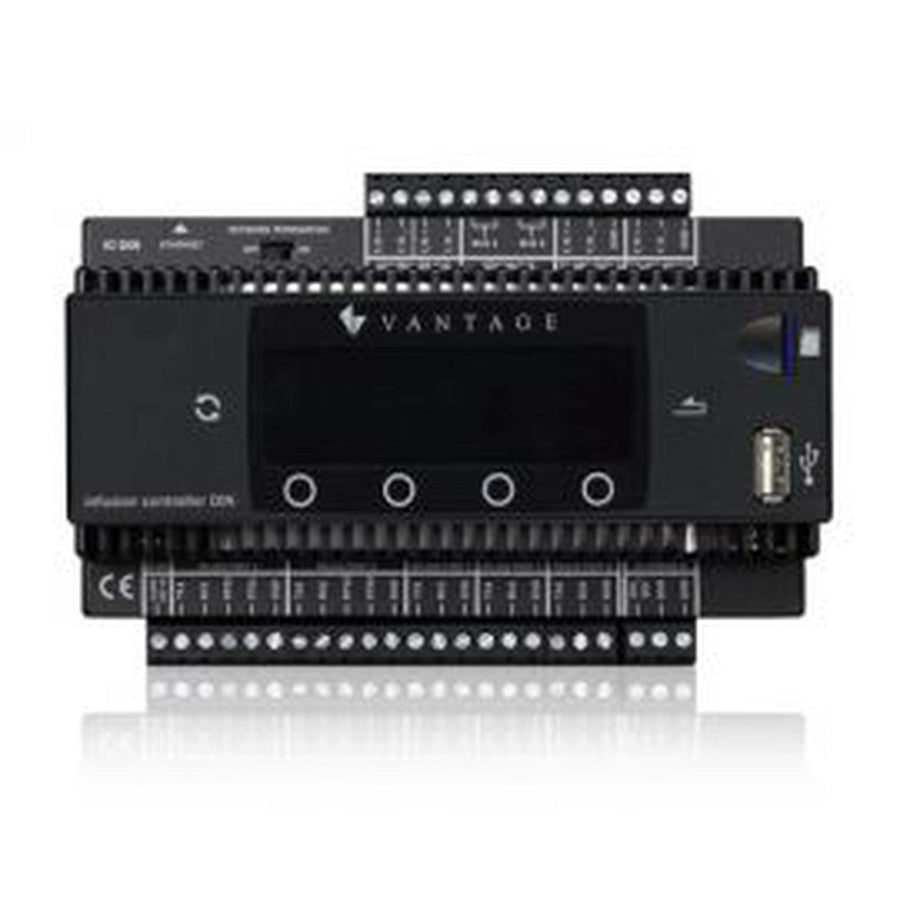

Vantage InFusion Controller II DIN
VC-IC-DIN-II
In stock
The InFusion Controller II in the DIN format meets the demand for delay-free control of large, complex systems with increased processor speed, RAM and flash memory. One controller supports up to 120 WireLink stations and up to 120 RadioLink stations, and controllers can be networked to expand the system to 31 controllers. Five RS-232 ports and two RS-485 ports provide easy device connectivity while an Ethernet connection supports IP-connected products, and the controller works with both 24VDC and 36VDC Vantage power supplies.
| Model | IC-DIN-II |
| Dimensions (H×W×D) | 3.4" × 6.18" × 2.375" (86mm × 157mm × 60mm) |
| Weight | 417 g |
| Mounting | 35mm DIN Rail (EN 50 022: 1977) |
| Ambient Operating Humidity | 5-95% non-condensing |
| Ambient Operating Temperature | 0-40°C (32-104°F) |
| Cooling | Convection |
| Lithium Battery Backup | Disk battery CR2032, 3 Volt; 2.5 yrs. un-powered or 20 yrs. powered (field replaceable) |
| Power Requirement | 36VDC/5.5A or 24VDC/2.5A |
| Ports | 5 RS-232 ports; 2 RS-485 ports; Ethernet |
| Stations | 120 low voltage stations; 120 wireless stations |
| Controllers Supported | Up to 31 controllers |
| Listings | UL, CUL and CE Listed |
| Warranty | 5-year limited (Vantage) |
No downloads available for this product.
No compatibility information available for this product.
