VANTAGE CONTROLS
Vantage Equinox 73 LCD Touchscreen
VC-EQ73TB-TI-III
Backorder

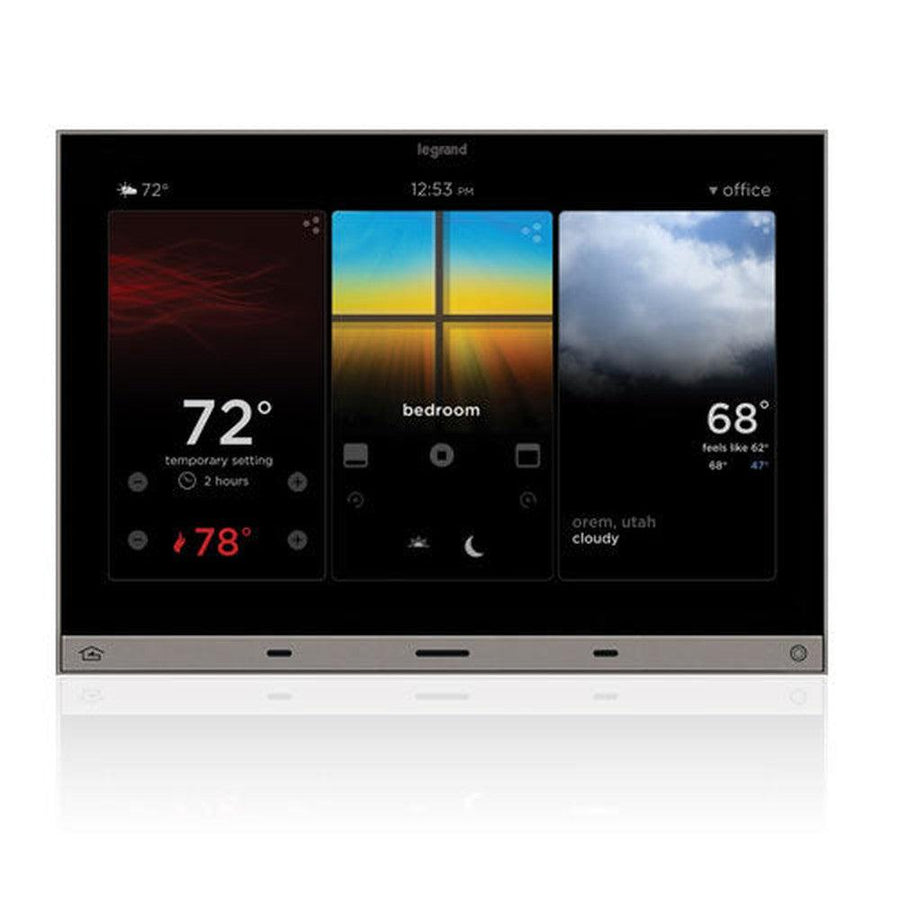

The Equinox 73 is a high-bright 7" LCD touchscreen that is always on and always available, displaying three vibrant widgets at a time for immediate control and status of multiple sub-systems. It offers a simple, tablet-style navigation experience with complete consistency across Equinox 41 touchscreens, Equinox 40 keypads and Equinox mobile apps. Powered over PoE with a glass-to-edge titanium aesthetic, ambient light and motion sensors, each unit includes one software license for the Equinox app.
| Model | EQ73TB-TI-III |
| Display | Active matrix color LCD, 7" diagonal |
| Display Resolution | 1024 × 600 pixels |
| Hard Buttons | Left: home; right: programmable |
| On-wall Surface (HWD) | 4.9" × 6.9" × 0.37" (124mm × 175mm × 9mm) |
| Overall (HWD) | 4.9" × 6.9" × 2.1" (124mm × 175mm × 53mm) |
| Weight | 1.6 lb (725.75g) |
| Power | PoE / PoE+ (48VDC PoE source) |
| Surge Suppression | Yes |
| Wiring Connections | Communication: Ethernet RJ45 or WiFi dongle; Power: PoE/PoE+ |
| Addressing | Self addressing through software |
| Finishes | Trim: titanium; touchscreen: black glass |
| Glass Surface | Chemically strengthened |
| Ambient Operating Temperature | 32°F - 95°F (0°C - 35°C) |
| Ambient Operating Humidity | 5 - 95% non-condensing |
| Certification | CE, FCC |
| Licensing | Each Equinox device includes one software license for the Equinox app |
| System Compatibility | InFusion (Design Center 3.9.2.590 and above) |
| Warranty | 5-year limited (Vantage) |
