VANTAGE CONTROLS

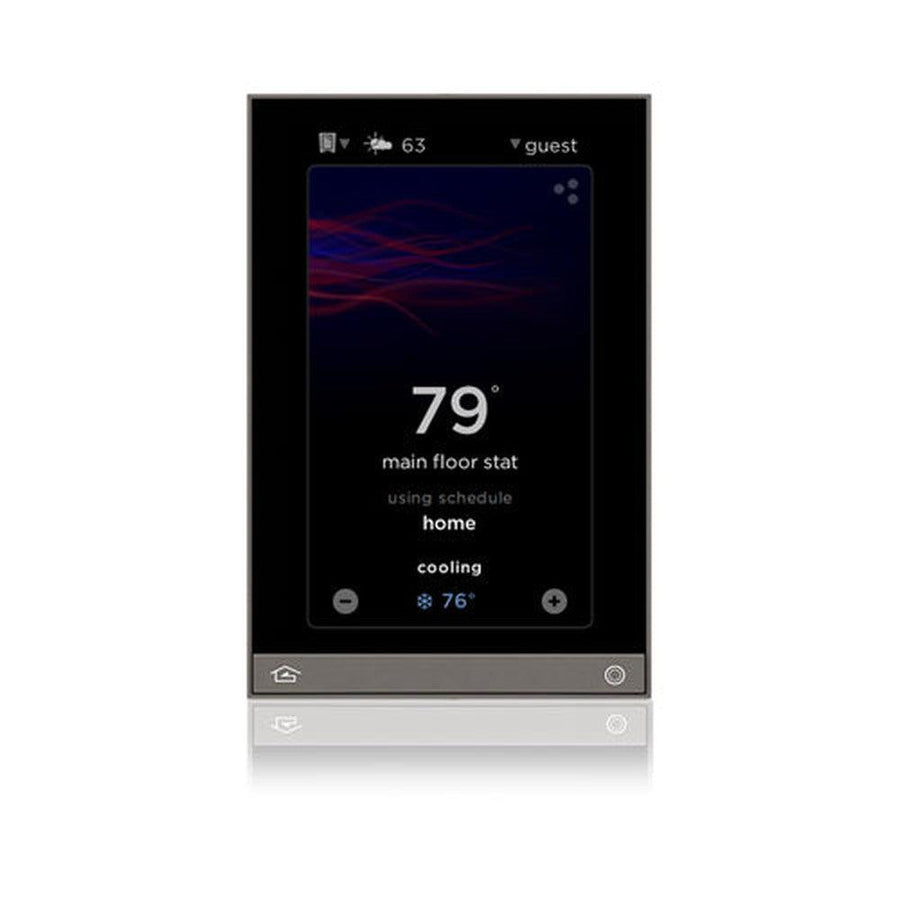

Vantage Equinox 41 LCD Touchscreen
VC-EQ41TB-TI
Backorder
The Equinox 41 is a minimalist single-gang LCD touchscreen that functions as a graphical user interface to the Vantage system, presenting a personalized dashboard for multi-system control through on-screen widgets. One widget is shown per page with full-screen and edit modes, and individualized profiles can be created by time of day, location, function or user. Featuring a projected capacitive touch interface, ambient light and motion sensors, and Cat5e connectivity with PoE, it delivers smartphone-consistent control with the power of InFusion and Design Center.
| Model | EQ41TB-TI |
| Display | Active Matrix Color LCD, 4.3" diagonal, projected capacitive touch |
| Display Resolution | 800 × 480 pixels |
| Hard Buttons | Left - Home / Right - Programmable |
| On-Wall Surface (HWD) | 4.9" × 3.44" × 0.44" (124mm × 87mm × 11mm) |
| Overall (HWD) | 4.9" × 3.44" × 1.38" (124mm × 87mm × 35mm) |
| Weight | 1.6 lb (725.75g) |
| Power | 12VDC via PoE |
| Surge Suppression | Yes |
| Wiring Connections | Ethernet RJ45 |
| Addressing | Self addressing through software |
| Finishes | Trim: Titanium; Touchscreen: Black Glass |
| Glass Surface | Chemically strengthened |
| Ambient Operating Temperature | 32°F - 95°F (0°C - 35°C) |
| Ambient Operating Humidity | 5 - 95% non-condensing |
| Certification | CE, FCC |
| System Compatibility | InFusion |
| Warranty | 5-year limited (Vantage) |
No downloads available for this product.
No compatibility information available for this product.
