VANTAGE CONTROLS

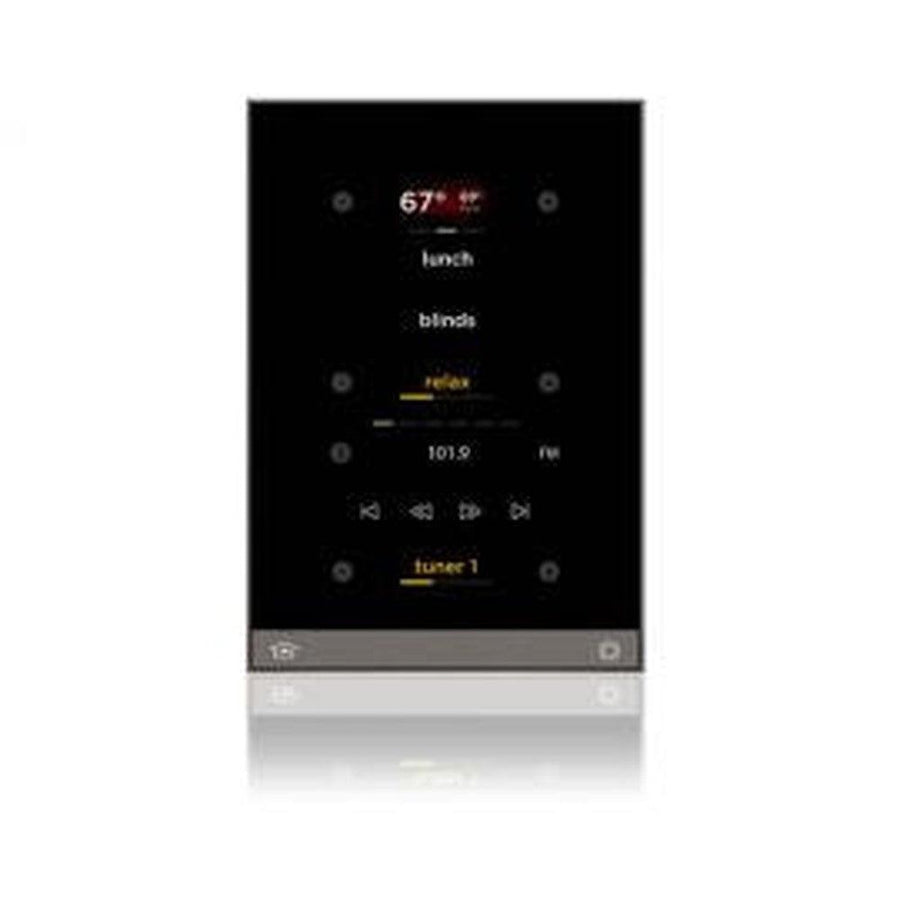

Vantage Equinox 40 LCD Keypad
VC-EQ40TB-TI-II
In stock
The Equinox 40 is a small form factor LCD keypad that delivers control of scenes, shades, audio and climate from a single-gang form factor, with a navigation experience consistent across Equinox touchscreens and apps. Powered and communicating via Vantage Station Bus, it offers up to four mini-widget combinations and access to between 9 and 15 programmable lighting or scene buttons depending on the configuration. A continuous glass LCD, proximity sensor and tactile home button make it an elegant upgrade from traditional Vantage keypads.
| Model | EQ40TB-TI-II |
| Display | Active matrix color LCD, 4.3" diagonal |
| Display Resolution | 480 × 272 pixels |
| Colors | 16 bit color |
| Hard Buttons | Left - home, right - programmable |
| On-wall Surface (HWD) | 4.9" × 3.44" × 0.44" (124mm × 87mm × 11mm) |
| Overall (HWD) | 4.9" × 3.44" × 1.38" (124mm × 87mm × 35mm) |
| Wiring Connections | 2 wire 600V pigtail (included); 6 wire aux. pigtail (ordered separately) |
| Power | Powered and communicating via Vantage Station Bus; 24V or 36V based on controller voltage; low power consumption (3.05 watts) |
| Operating Temperature | 32°F - 95°F (0°C - 35°C) |
| Ambient Operating Humidity | 5-95% non-condensing |
| Certification | CE, RoHS |
| System Compatibility | InFusion (Design Center 3.1 or higher) |
| Warranty | 5-year limited (Vantage) |
No downloads available for this product.
No compatibility information available for this product.
