VANTAGE CONTROLS
Ambient Daylight Sensor
VC-EM-LIGHTSENSOR
In stock

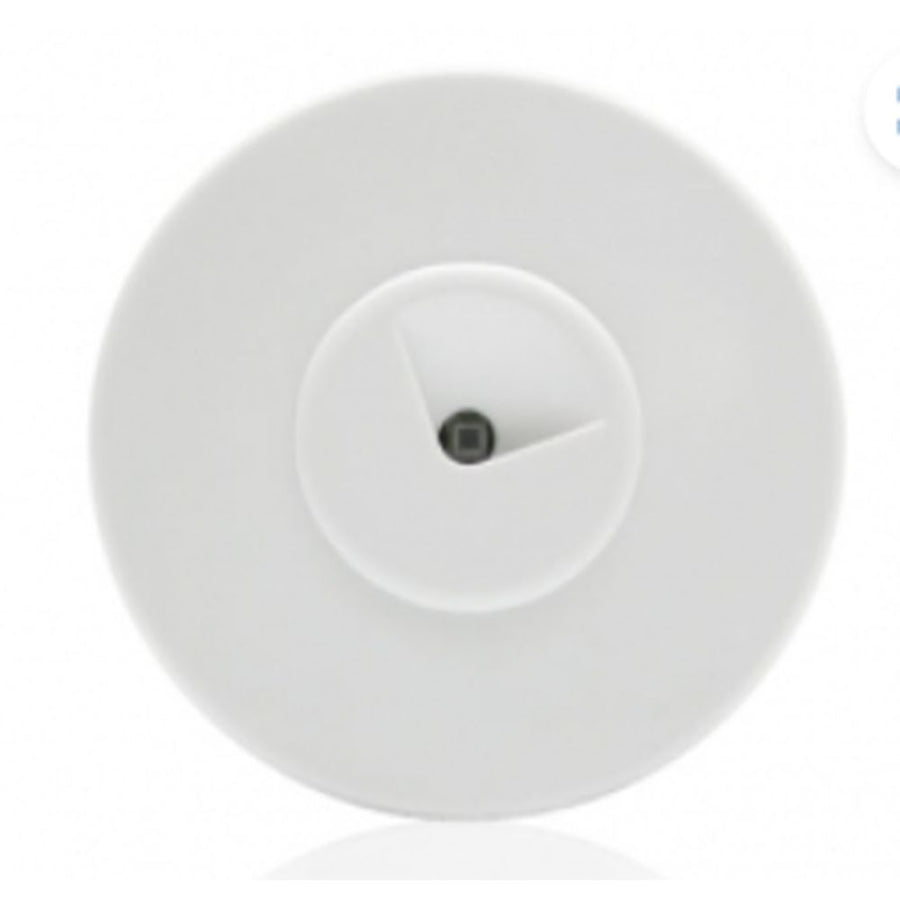

The Vantage EM-LIGHTSENSOR measures the intensity of visible light in an area so the Vantage system can automatically adjust lighting fixtures and blinds to maintain a consistent light level. It can harvest natural daylight to limit artificial light for energy savings, or act like a photocell that turns lights on or off at a preset level. Designed to be virtually unnoticeable, it reads across a near-infinite scale from 0 through 10,000fc and features a rotatable directional cutaway to maximise sensitivity toward a chosen light source.
| Model | EM-LIGHTSENSOR |
| Dimensions (diam. x H) overall | 2.0in x 1.6in (51mm x 41mm) |
| Dimensions (diam. x H) finished | 2.0in x 0.16in (51mm x 4mm) |
| Color | White |
| Mounting | Ceiling or Wall Mountable |
| Optimum Mounting Height | 2.5m (8 ft) |
| Directional Detection Pattern | Rotate for Light Source Reading |
| Voltage | 12VDC |
| Current Draw | 10mA |
| Ambient Operating Temperature | 0°C - 35°C / 32 - 95°F |
| Ambient Operating Humidity | 5-95% non-condensing |
| Measured Light Spectrum / Scale | Visible Light; 0 through 10,000fc |
| System Requirements | Compatible with InFusion Design Center software or QLink software 3.0 with Controller firmware version 5.91 or higher |
| Warranty | 5-year limited (Vantage) |
