VANTAGE CONTROLS

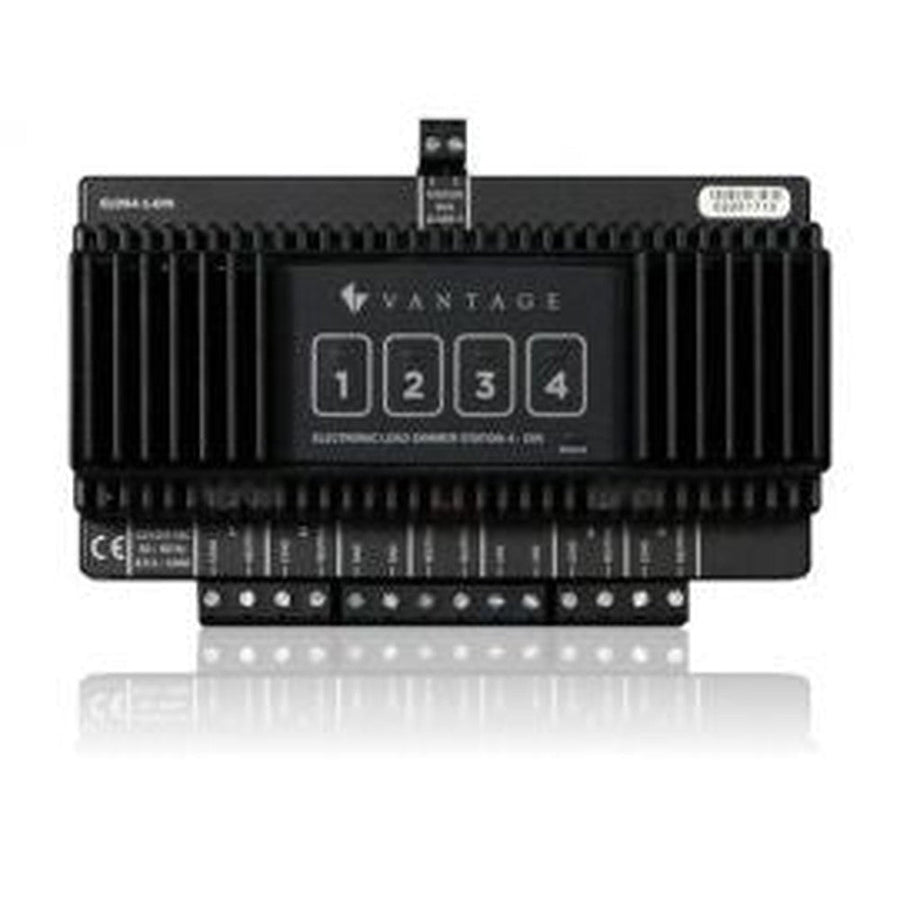

Vantage ELDS4-1-DIN Electronic Load Dimming Station 4-1 - DIN
VC-ELDS4-1-DIN
In stock
The Vantage ELDS4-1-DIN is a 4-channel dimming station that connects to the Vantage Control System, powered from a local line feed and communicating through the Vantage 2-wire station bus. Designed exclusively for electronic loads, it supports trailing edge (reverse phase) dimming and detects short circuits, shutting down the load until the short is cleared. It installs easily on standard 35mm DIN rail with load actuator buttons and status indicators on the front face.
| Model | ELDS4-1-DIN |
| Dimensions (HWD) | 86mm × 157mm × 70mm (3.4" × 6.18") (9 DIN module) |
| Weight | 635g |
| Mounting | 35mm DIN Rail (EN 50 022: 1977) |
| Number of Loads | 4 |
| Dim Type | Reverse Phase Dimming |
| Load Types | Electronic |
| Maximum Current per Load | 4.0A - see load configurations on installation instructions sheet |
| Maximum Watts per Load | 480W@120V or 960w@240v - Attention! Not all channels can be used at max. load |
| Maximum Voltage | 250VAC |
| Maximum Line Feeds | 1 @ 20A (Maximum) breaker - 8A Maximum current per station |
| Minimum Load | 25W |
| MOV Protection | Built-in each load |
| Overload Protection | For recommended load types only (i.e. lighting loads only) |
| Short Circuit Detection | Prevents load from turning ON (will not protect if shorted while ON) |
| Cooling | Convection |
| LED Indicators | Status and Load State |
| Lightning Surge Protection High Voltage | IEEE C62.41 (6000V 3000A) |
| Lightning Surge Protection Low Voltage | ITU-T K.20 |
| Station Equivalent InFusion | 0.36W on IC-24 / 0.54W on IC-36 |
| Station Bus Connections | 24V / 36V Station bus |
| Ambient Operating Temperature | 0–40°C (32–104°F) |
| Ambient Operating Humidity | 5–95% non-condensing |
| System Compatibility | InFusion; QLink (programmed as the SLDS4-DIN) |
| CE Certified | Yes |
| Warranty | 5-year limited (Vantage) |
