VANTAGE CONTROLS

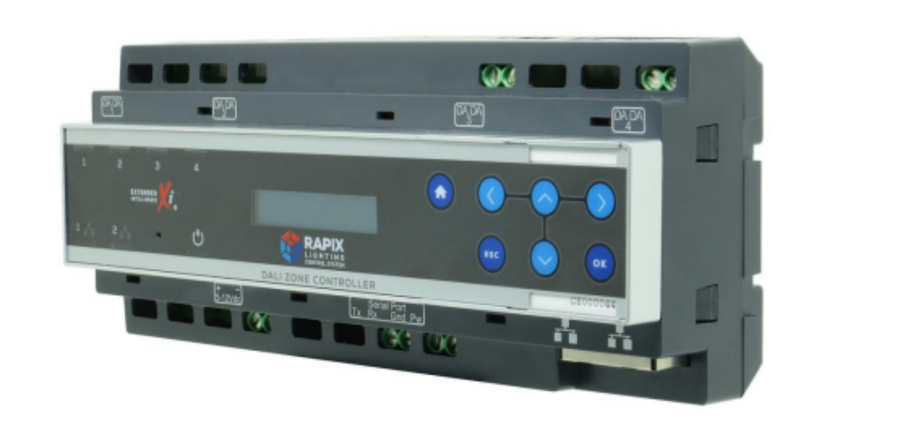

DALI 2.0 Gateway (4 Lines)
VC-DALI2.0-GW
In stock
The DALI 2.0 Gateway is an embedded Ethernet/DALI controller that supports seamless joining of individual DALI lines across a building. Each gateway connects to four physical DALI lines and communicates over an Ethernet network to lines on other gateways, allowing DALI devices and groups on any line to be linked into zones and scenes. A DIN-rail-mounted unit with an LCD menu interface and dual Ethernet switch ports, it is configured using the RAPIX Integrator software tool.
| Order Code | DALI 2.0 GW |
| DALI Line Capacity | Up to 4 separate DALI lines can be connected, with up to 64 devices on each line |
| DALI Line Operating Voltage | 18 V dc (nominal), supplied by external DALI power supply |
| DALI Line Current Draw | 2 mA (nominal) per DALI line |
| Power Source | External power supply: 5 – 12 V dc, 200 mA @ 12 V dc |
| Ethernet | 10 / 100 Base-T, on-board 2 port Ethernet switch, Auto MDI-X |
| Ethernet Connectors | 2 x RJ45 sockets |
| DALI Connectors (per line) | 2 x screw down terminal block, suitable for 2 x 2.5 mm² conductors |
| Mounting | DIN rail (35 mm) mounted |
| Integration / API | Native secured API, Native trusted API, REST API, Modbus/TCP Client |
| LCD Display | Backlit, monochrome, 2 rows x 20 character |
| Serial Port Connection | 4-wire, Tx, Rx, Ground and Power |
| Operating System | Windows Embedded Compact 7 |
| Ambient Operating Temperature | 0 to 50° C |
| Ambient Storage Temperature | -10 to 70° C |
| Humidity | 0% to 95% RH non-condensing |
| Ingress Protection | IP20 |
| Materials | Enclosure – Flame retardant Polycarbonate, UL 94V-0 |
| Dimensions | 215.5 mm x 91.9 mm x 61.2 mm |
| Weight | 400 g (excluding power supply) |
| Warranty | 5-year limited (Vantage) |
