VANTAGE CONTROLS

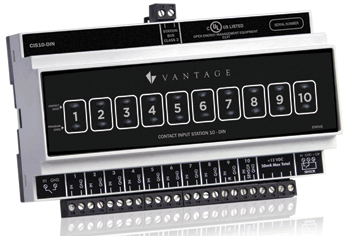

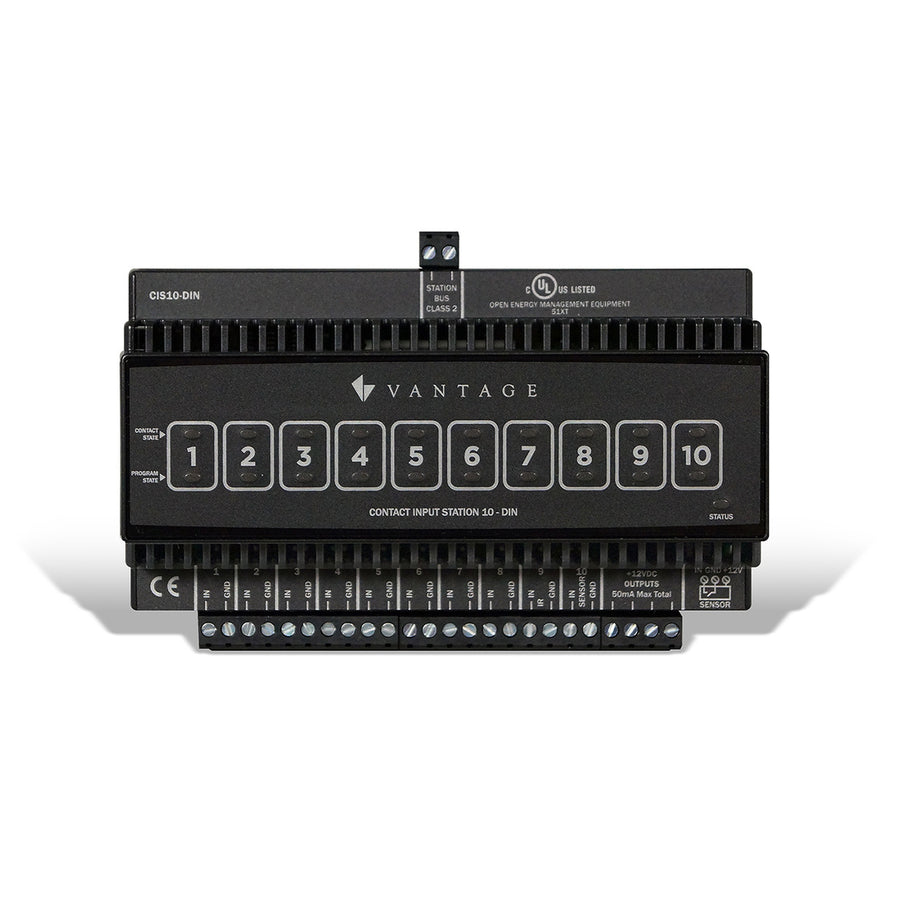

Contact Input Station - DIN
VC-CIS10-DIN
In stock
The DIN Contact Input Station provides a single integration point for a large variety of sensor inputs and external switches from third-party systems. Each station features ten contact input channels for monitoring the open and close states from devices such as magnetic door contacts, momentary switches, motion detectors, smoke and carbon monoxide detectors, and driveway probes. It clips easily onto a standard 35 mm DIN rail and communicates with the controller via WireLink or RadioLink.
| Model | CIS10-DIN (WireLink) / DIN-STIDER121 (RadioLink) |
| Dimensions (HWD) | 86 mm x 157 mm x 60 mm (3.4" x 6.18" x 2.375") |
| Weight | 201 g (8.04 oz) |
| Mounting | 35 mm DIN Rail (EN 50 022: 1977) |
| Number of Contact Inputs | 10 |
| Ambient Operating Humidity | 5-95% non-condensing |
| Ambient Operating Temperature | 0°-40° C (32°-104° F) |
| Cooling | Convection |
| Maximum Current from +12 V | 50 mA combined |
| Software Requirements | InFusion Design Center or QLink version 4.0 or higher |
| Station Equivalent InFusion | Counts as 0.5W on IC-24 / 0.7W on IC-36 |
| Station Equivalent QLink | 1 Station on QLink Main Controller |
| Station Bus Wiring Minimum | 2 conductor, 16 AWG stranded, non-shielded twisted pair, 30 pF/foot max, UL rated CL2 |
| Station Bus Topology | Any combination of daisy chain or star or branch or home run |
| RadioLink Frequency Range | 902–928 MHz ISM band |
| RadioLink RF Technology | Frequency hopping spread spectrum |
| RadioLink Number of Channels | 25 |
| System Compatibility | InFusion, QLink |
| Warranty | 5-year limited (Vantage) |
