PULSE EIGHT

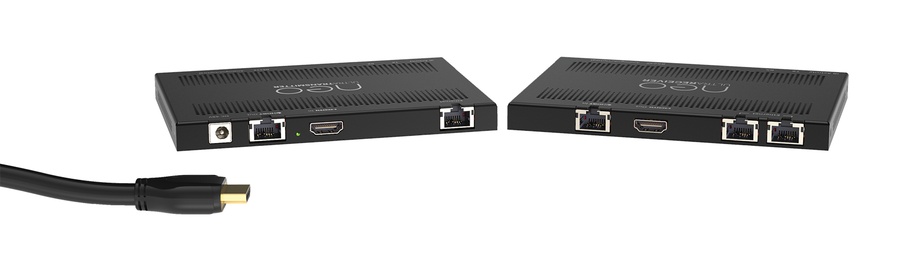

Pulse-Eight neo:Ultra Long-Range HDMI Extender Set
P8-HDBT2-U-EXSET LR
RRP
$2,699.00
incl GST
Backorder
The long-range version of the Pulse-Eight neo:Ultra extender set. Like the standard neo:Ultra it carries full-bandwidth 18Gbps HDMI — all 4K formats up to 4K/60Hz 4:4:4 and 4K/60 HDR10 — over a single Cat5e/6/7 cable with HDBaseT Class C + Display Stream Compression, but the LR variant reaches further, extending the signal over longer cable runs for larger installations.
At 13 mm thin each unit wall-mounts discreetly, with Power over HDBaseT feeding the receiver from the transmitter, plus HDMI-CEC, bi-directional IR and Ethernet pass-through. Supplied as a transmitter and receiver pair with IR cables, wall brackets, power supply and installation guide. Three-year warranty.
| Maximum resolution | 4K/60Hz 4:4:4 (all 4K formats), 4:2:2 60Hz HDR10 |
| Distance | Long-range — extends further than the standard neo:Ultra set |
| Maximum bandwidth | 18 Gbps (600 MHz) |
| HDCP | HDCP 1.4 & 2.2 |
| HDBaseT class | Class C + DSC (Ultra) |
| Control | HDMI-CEC, bi-directional IR, Ethernet pass-through |
| Power | 48V supply (TX); Power over HDBaseT to RX |
| Dimensions (each) | 148 × 105 × 13 mm |
| In the box | Transmitter & receiver, IR blaster cables, wall brackets, power supply, installation guide |
| Certifications | UKCA, CE, FCC, RoHS |
No compatibility information available for this product.
