TRU-AUDIO

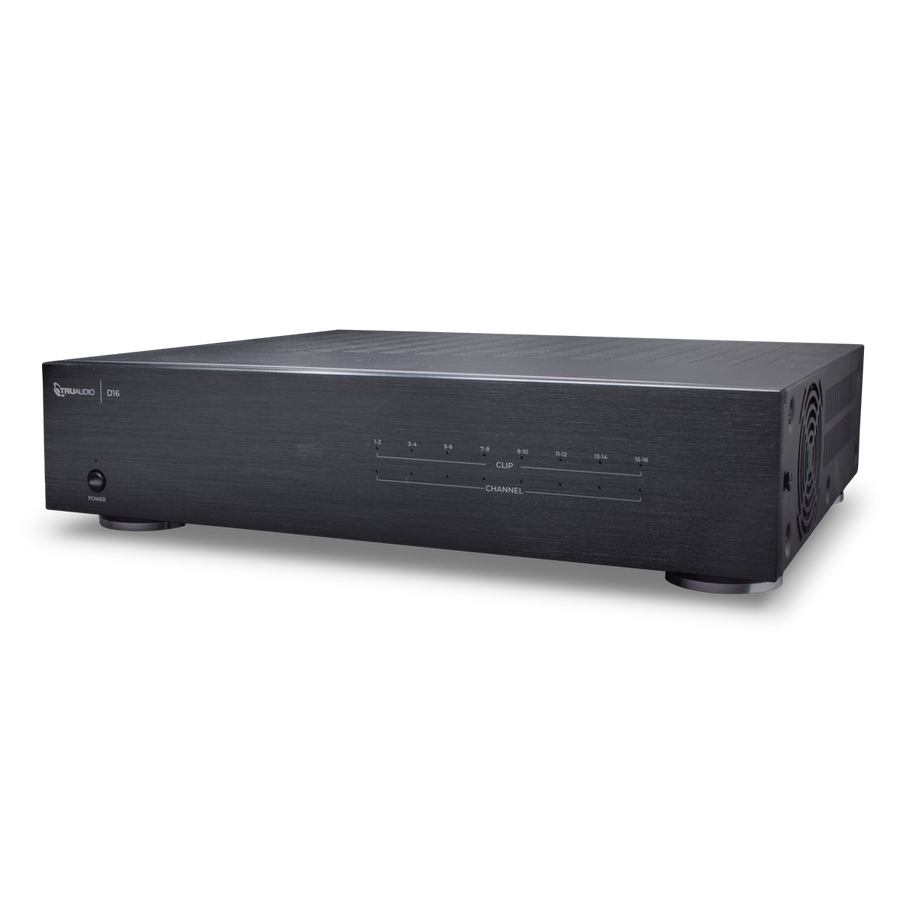

16-channel, 75W per Channel, 8-Zone Class D Power Amplifier, Sub-out per Zone
TRU-D16
RRP
$5,999.00
incl GST
In stock
The D16 is a 16-channel, 8-zone Class D power amplifier delivering 75W per channel into 8Ω with all channels driven (150W into 4Ω), or 150W into 8Ω bridged. It features a subwoofer output for every zone plus bus inputs and outputs, making it well suited to large multi-zone distributed audio installations.
| Channels | 16 |
| Zones | 8 |
| Power Output | 75w @ 8Ω All Channels Driven, 150w @ 4Ω |
| Bridged Power | 150w @ 8Ω |
| Inputs | (2) Bus In, Line In per ch |
| Subwoofer Outputs | (8) Subwoofer outputs, (2) Bus Out |
| Sub Crossover Range | 40Hz - 140Hz |
| Frequency Response | 20Hz-20kHz |
| Harmonic Distortion | <.9 @ 8Ω, <1% @ 4Ω |
| S/N Ratio | > -90dB |
| Dimensions | H: 4.2" (105mm) × W: 16.8" (427mm) × D (with RCA Ports): 13.5" (343mm) |
| Certifications | CE, CB, NRT, FCC, CE-EMC, ERP |
| Warranty | Limited Lifetime (TruAudio) |
