PULSE EIGHT

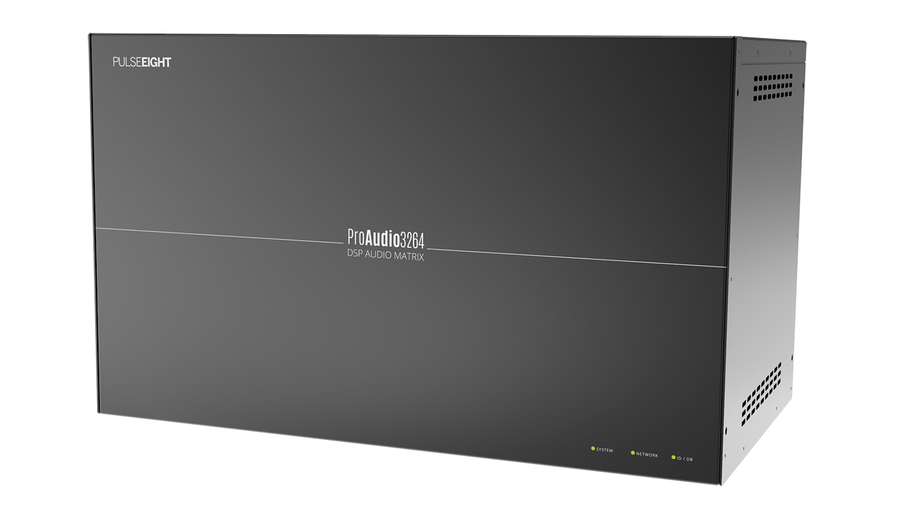

Pulse-Eight ProAudio 3264 DSP Audio Matrix (80×64)
P8-PRO3264
RRP
$38,999.00
incl GST
Backorder
The ProAudio 3264 is the largest matrix in the range, distributing up to 80 audio sources to 48 analogue and 64 digital output zones simultaneously. Every zone has its own 5-band parametric EQ, independent volume and gain, subwoofer crossover control and up to 170ms of lip-sync delay — all configured from the built-in web interface or through Control4, Crestron, ELAN, RTI and Savant drivers. Built in Great Britain from anodised brushed aluminium.
| Configuration | 80 audio inputs → 48 analogue + 64 digital output zones |
| Inputs | 32 × stereo L/R, 32 × digital coax, 16 × optical |
| Outputs | 48 × stereo L/R + 64 × digital coax |
| Per-zone DSP | 5-band EQ, volume -20 to +20dB (0.5dB), treble ±20dB, input/output gain -24 to +24dB |
| Subwoofer control | Crossover 50-300Hz, 12/24dB per octave, Butterworth or Linkwitz-Riley, selectable polarity |
| Lip-sync delay | Up to 170ms per zone |
| Supported formats | PCM, Dolby Digital 5.1, DTS |
| Audio performance | 5Hz-20kHz ±0.1dB, S/N >85dB, input impedance 10kΩ |
| Control | RS-232, TCP/IP; Control4, Crestron, ELAN, RTI, Savant drivers |
| Power | IEC C14, 110-240V 50/60Hz |
| Build | Anodised brushed aluminium; rack-mountable; made in Great Britain |
| Safety & emissions | UKCA, CE, FCC, RoHS |
