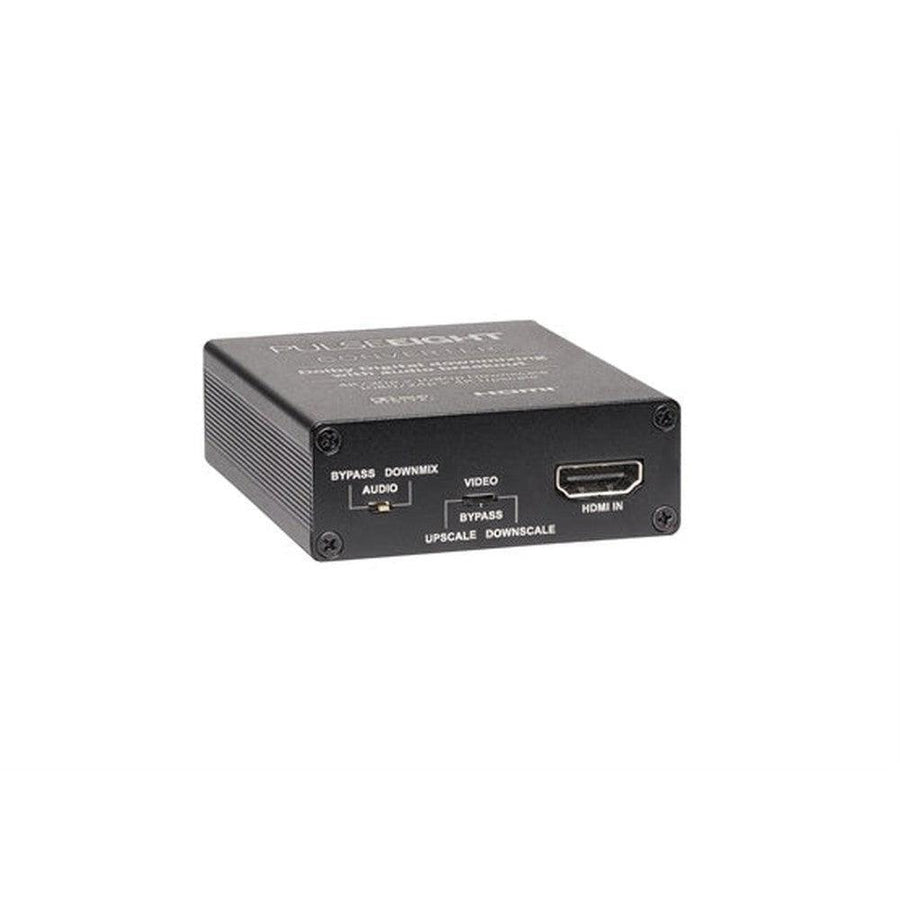

Pulse-Eight HDMI DAC — Dolby Down-Mixer & 4K/HD Scaler
P8-HDMIDAC
RRP
$383.33
incl GST
In stock
The Pulse-Eight HDMI DAC (P8-HDMIDAC) is an in-line audio converter and video scaler that sits between a source and a display. It down-mixes incoming Dolby Digital (up to 5.1) to stereo PCM over HDMI and breaks audio out to a 3.5 mm jack, so older amplifiers and zone audio can take a clean stereo feed.
It also scales video both ways — downscaling 4K/30p to 1080/24p so existing HD screens can display 4K sources through a 4K matrix, and upscaling 1080/24p to 4K/30p for connection to 4K displays. A switchable input selects video/audio scaling or straight pass-through, and the unit equalises and boosts the HDMI signal for longer cable runs.
Compact and simple to deploy, it's the ideal fix for multi-zone residential or commercial systems that mix 4K and HD displays without compromising source resolution.
| Function | Dolby Digital down-mix to stereo PCM + 4K/HD video scaling |
| Max resolution | Up to 3840 × 2160p @ 24/25/30Hz |
| Video scaling | Down 4K/30p → 1080/24p; Up 1080/24p → 4K/30p |
| 3D support | Up to 1080p/24Hz (frame packing/sequential, interlaced stereoscopic) |
| Audio input | 5.1 Dolby Digital or 2ch stereo PCM |
| Audio output | Pass-through or 2ch PCM (downmix); 3.5 mm breakout |
| Audio quality | Up to 24-bit / 192kHz; auto-sample 32/44.1/48kHz; THD+N -93dB |
| HDMI | V1.4a in/out; 10.2Gbps; 4:2:0 4K/60 pass-through |
| Transmission distance | 4K 7m / 1080p 10m (in & out) |
| Power | 5V DC, 5W supply |
| Dimensions | 65 × 23 × 77 mm (W×H×D) |
| Weight | 105 g |
| Operating temperature | 0 to +35°C |
| Certifications | CE, FCC, RoHS, Dolby Digital |
