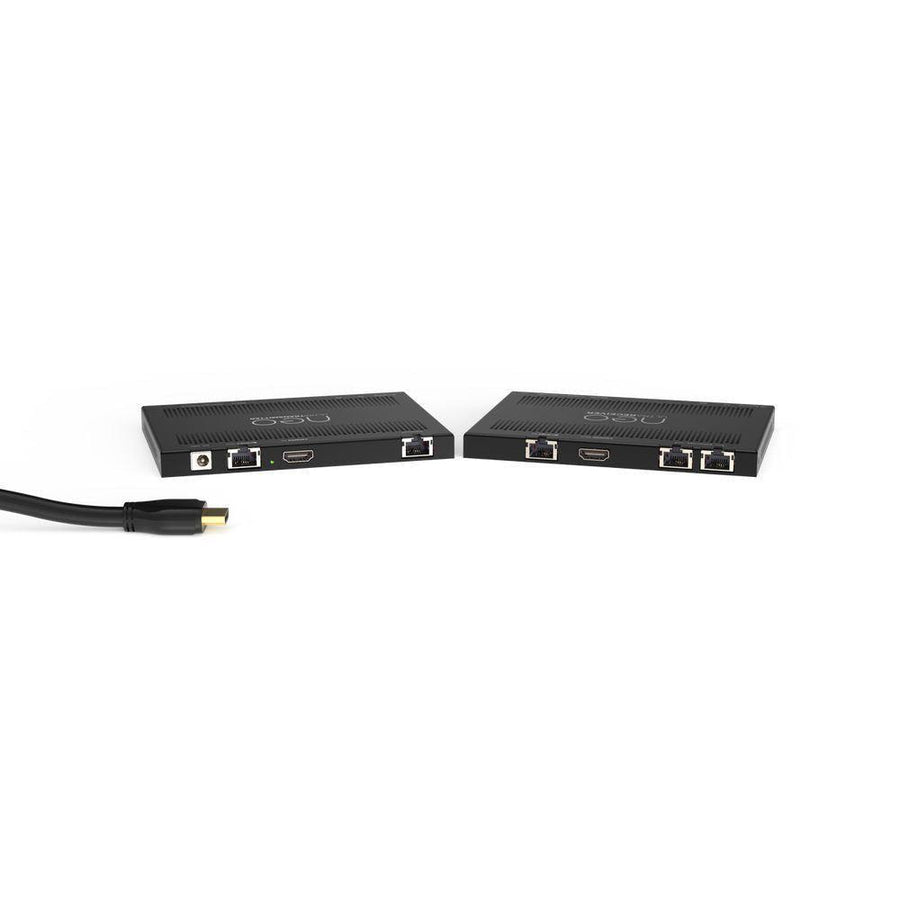

Pulse-Eight neo:Ultra 100m HDMI Extender Set
P8-HDBT2-U-EXSET
RRP
$1,629.17
incl GST
In stock
The Pulse-Eight neo:Ultra is the flagship HDBaseT extender set, carrying full-bandwidth 18Gbps HDMI — all 4K formats up to 4K/60Hz 4:4:4 and 4K/60 HDR10 — up to 100 metres over a single Cat5e/6/7 cable. It uses HDBaseT Class C with Display Stream Compression (DSC) to move uncompromised UltraHD video and audio across the home or commercial space with zero latency.
At just 13 mm thin, each unit wall-mounts discreetly behind a screen or in a rack. Power over HDBaseT (PoH) powers the receiver from the transmitter over the same cable. HDMI-CEC, bi-directional IR and Ethernet pass-through round out a fully-featured AV backbone.
Supplied as a transmitter and receiver pair with IR cables, wall brackets, 48V power supply and installation guide. Backed by a three-year manufacturer warranty.
| Maximum resolution | 4K/60Hz 4:4:4 (all 4K formats), 4:2:2 60Hz HDR10 |
| Distance | Up to 100 m over Cat5e/6/7 |
| Maximum bandwidth | 18 Gbps (600 MHz pixel clock) |
| Supported formats | 4K/60 4:4:4, 4:2:2 60Hz HDR10, 1080p (+3D), 1080i, 720p |
| HDCP | HDCP 1.4 & 2.2 |
| HDBaseT class | Class C + DSC (Ultra) |
| Control | HDMI-CEC, bi-directional IR, Ethernet pass-through |
| Power | 48V supply (TX); Power over HDBaseT to RX. TX 7.3W / RX 8W |
| Dimensions (each) | 148 × 105 × 13 mm (W×D×H) |
| Weight (each) | 0.16 kg |
| Operating temperature | 0 to +35°C |
| Certifications | UKCA, CE, FCC, RoHS |
| In the box | neo:Ultra transmitter & receiver, IR blaster cables, wall brackets, 48V power supply, installation guide |
| Warranty | 3 years |
- Datasheet PDF
- Install guide
- Additional Login required
No compatibility information available for this product.
