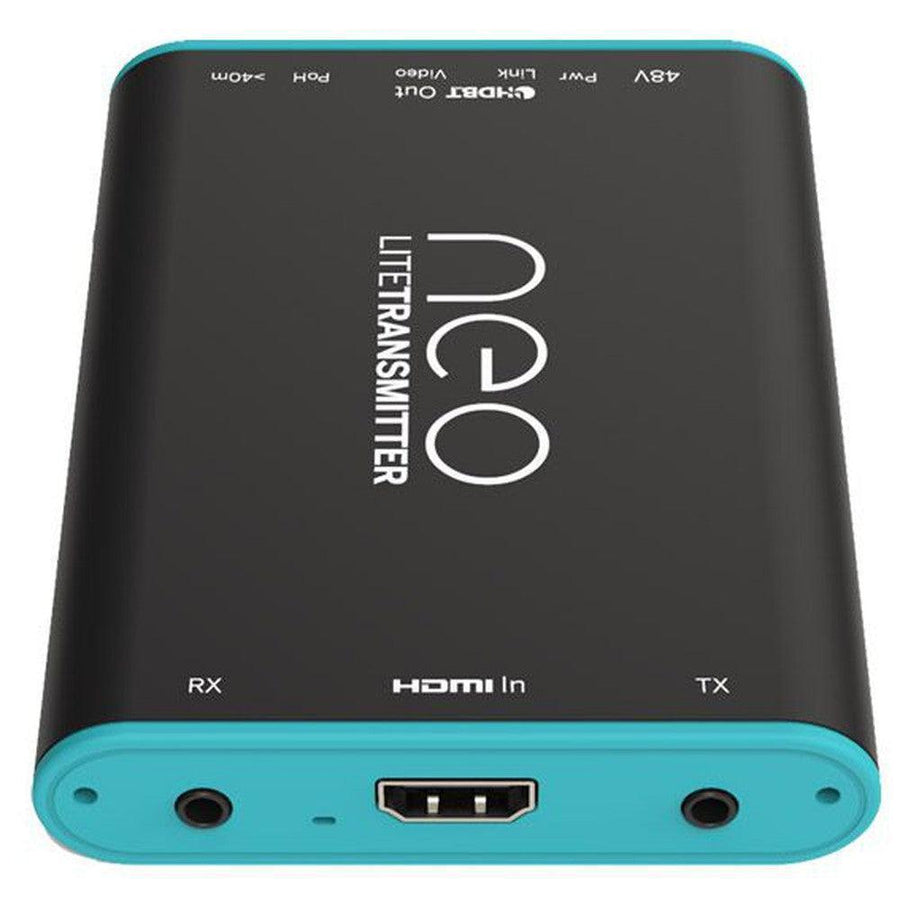

Pulse-Eight neo:Lite 70m HDMI Extender Set
P8-HDBT-L-EXSET
RRP
$725.28
incl GST
In stock
The Pulse-Eight neo:Lite is an entry-level HDBaseT extender set that sends HDMI over a single Cat5e/6/7 cable, letting you locate sources in a central rack away from the display. It extends 4K up to 40 metres and 1080p up to 70 metres, with support for HDMI 2.0a timings including High Dynamic Range (HDR) in BT.709 colour.
Compact and wall-mountable, the kit uses Power over HDBaseT (PoH) so the receiver draws power from the transmitter over the same cable — only the transmitter needs a supply. HDMI-CEC and bi-directional IR pass-through let you keep remote control of the source from the display end.
Supplied as a transmitter and receiver pair with IR cables, power supply and installation guide. Backed by a three-year manufacturer warranty.
| Maximum resolution | 4K UltraHD; 1080p@60Hz 36-bit |
| Distance (4K / 1080p) | Up to 40 m / up to 70 m over Cat5e/6/7 |
| Supported formats | 4K, 1080p (+HDR BT.709), 720p, VGA–WUXGA |
| HDCP | HDCP 1.4 & 2.2 |
| HDBaseT class | Class B (Lite) |
| Connections | 1 × HDMI in (TX), 1 × HDMI out (RX), 1 × HDBaseT each end |
| Control | HDMI-CEC, bi-directional IR |
| Power | 48V @ 0.5A inlet (TX only); Power over HDBaseT to RX |
| Dimensions (each) | 82 × 110 × 18 mm (W×D×H) |
| In the box | neo:Lite transmitter & receiver, IR blaster cable pack, power supply, installation guide |
| Warranty | 3 years |
