PULSE EIGHT
Pulse-Eight Dolby DAC — Dolby Digital to Stereo Downmix Converter
P8-DDAC
RRP
$313.06
incl GST
Backorder

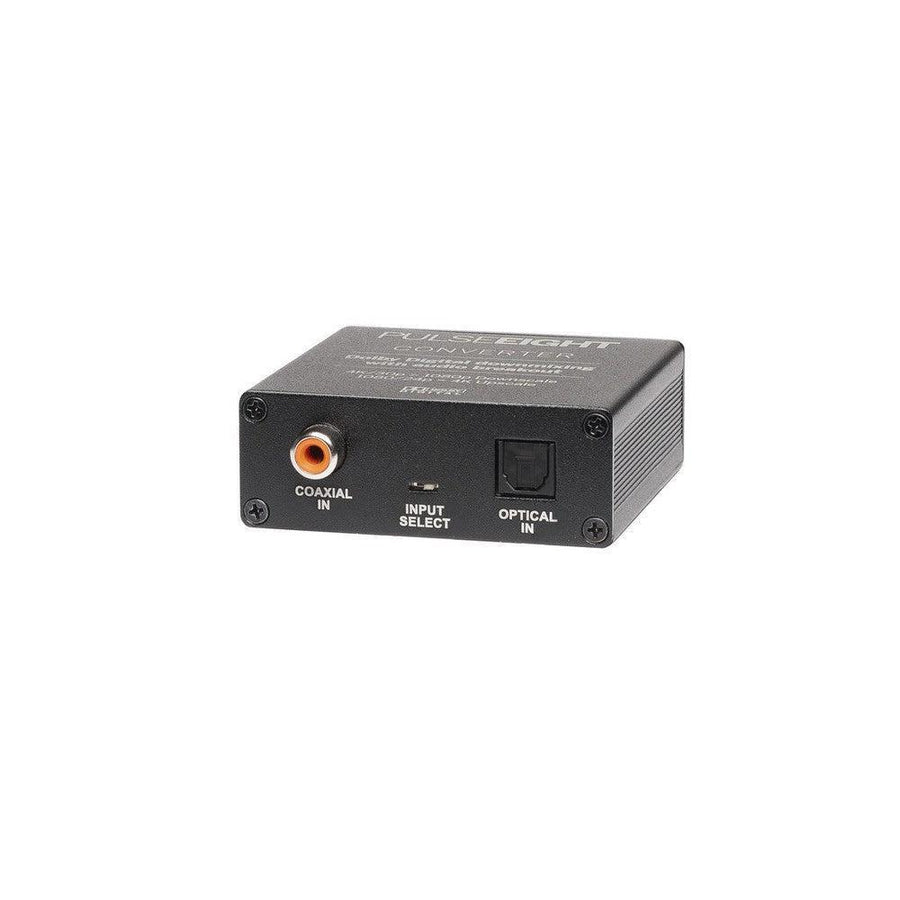

The Pulse-Eight Dolby DAC (P8-DDAC) decodes a Dolby Digital signal from an S/PDIF coaxial or TOSLINK optical source and downmixes it to analogue stereo (L/R) on phono outputs. That lets a modern digital source — Blu-ray, Apple TV, set-top box or games console — feed an analogue amplifier, hi-fi, recording deck or powered speakers with a clean stereo signal.
Unlike a plain converter, it handles the Dolby Digital downmix itself, so multichannel bitstreams arrive as proper stereo. An input-select switch chooses coax or optical, and the compact anodised-aluminium unit runs from a simple 5V supply.
| Function | Dolby Digital decode + downmix to analogue stereo |
| Inputs | Digital coaxial or optical (S/PDIF), input-select switch |
| Output | Stereo L+R (phono/RCA) |
| Distortion | <0.001% @ 1kHz at 2V RMS |
| Signal-to-noise | >90dB (20Hz–20kHz) |
| Output impedance | 500Ω |
| Frequency response | <±0.5dB |
| Power | 5V DC, max 5W |
| Dimensions | 78 × 24 × 62 mm; 0.1 kg; anodised aluminium |
| Certifications | CE, FCC, RoHS |
- Datasheet PDF
- Install guide
- Additional Login required
No compatibility information available for this product.
