PULSE EIGHT
Pulse-Eight Audio Delay (20–340ms Stereo / Lip-Sync)
P8-AD340
RRP
$313.06
incl GST
In stock

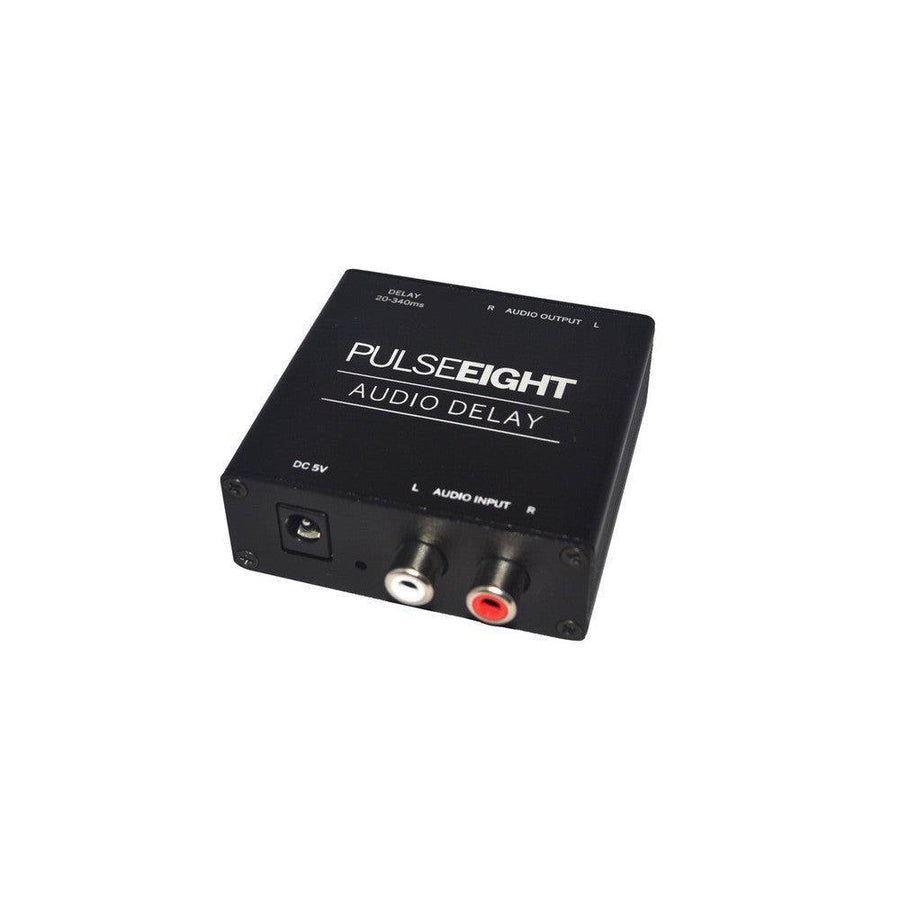

The Pulse-Eight Audio Delay corrects lip-sync by delaying a stereo analogue audio signal in 20 ms increments from 20 ms up to 340 ms, set on a simple 16-way selector. It sits in-line on a stereo L/R phono connection between source and amplifier, realigning audio that arrives ahead of the picture — common when video is processed or distributed and audio is split off separately.
Compact and simple, it runs from a 5V supply and needs no configuration beyond dialling in the delay. An easy fix for whole-home audio and AV distribution systems.
| Function | Stereo audio delay / lip-sync correction |
| Delay range | 20–340 ms in 20 ms increments (16-way selector) |
| Input / output | Stereo L/R phono (analogue line level), 1 zone |
| Power | 5V DC, max 5W |
| Dimensions | 62 × 22 × 77 mm; 0.1 kg |
| Operating temperature | 0 to +35°C |
| Certifications | UKCA, CE, FCC, RoHS |
No downloads available for this product.
No compatibility information available for this product.
