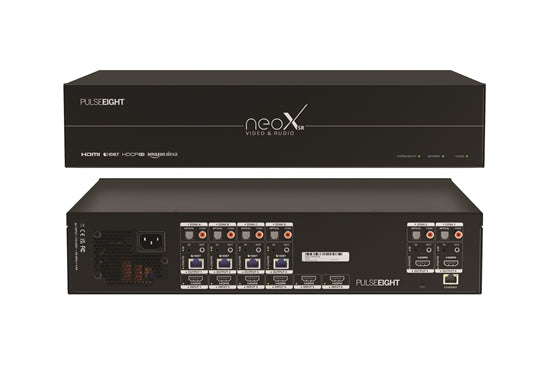

Pulse-Eight neo:XSR 6×6 18Gbps HDBaseT Matrix (Chassis)
P8-HDBT2LFFMJ66
RRP
$7,999.00
incl GST
Backorder
The neo:XSR is a 6×6 HDMI/HDBaseT video matrix built for true 4K/60 4:4:4 distribution. Supporting HDMI 2.0 a/b, HDCP 2.3 and full 18Gbps bandwidth with Display Stream Compression (DSC), it routes 6 HDMI inputs to 4 HDBaseT Class C zones plus 2 local HDMI outputs, with 6 audio output zones (optical & digital coax) and HDMI ARC. Full 4K/60 4:4:4 (8-bit) or 4:2:2 (12-bit) extends up to 40 m over a single Cat6/7 cable. HDMI-CEC, Alexa, contextual IR and a REST-API web interface are built in. Supplied as the matrix chassis only.
| Configuration | 6 × HDMI 2.0 in → 4 × HDBaseT Class C (+DSC) out + 2 × HDMI 2.0 out |
| Audio | 6 × audio output zones (optical & digital coax); HDMI ARC supported |
| Bandwidth / clock | 18 Gbps; 600MHz pixel clock |
| Max resolution | 4K@60Hz 4:4:4 (8-bit) or 4K@60Hz 4:2:2 (12-bit) |
| HDCP | HDCP 2.3 (HDMI 2.0 a/b) |
| Distance | 4K up to 40 m / 1080p up to 70 m over single Cat6/7; DSC technology |
| Control | HDMI-CEC, bi-directional IR, Alexa, responsive web interface with REST API |
| Power | Max 2A @ 240V |
| Operating range | 0 to +35°C |
| Origin | Designed, built & supported by Pulse-Eight, UK |
