PULSE EIGHT

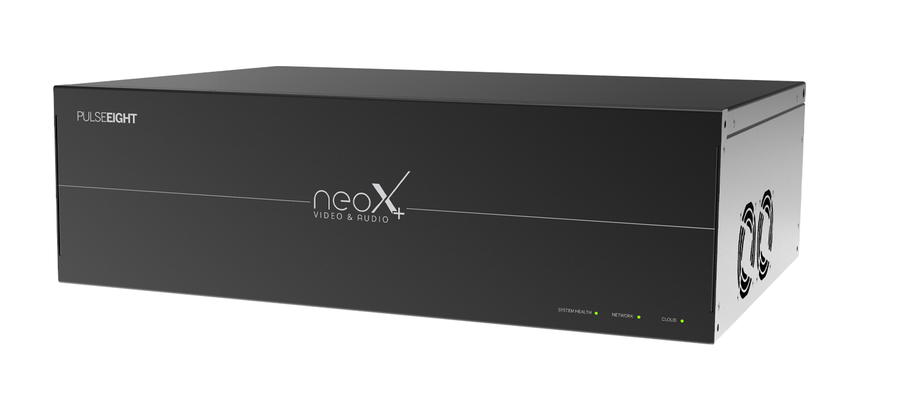

Pulse-Eight neo:X 8×10 HDBaseT Video & Audio Matrix (Chassis)
P8-HDBT2-U-FFMJ1210
RRP
$19,999.00
incl GST
Backorder
The Pulse-Eight neo:X is an 8×10 HDBaseT video and audio matrix — 8 HDMI inputs routed to 8 HDBaseT Class C + DSC (Ultra) outputs plus 2 mirrored HDMI outputs, with a full audio matrix and audio breakout of input sources. Display Stream Compression carries HDR and 4K/60 4:4:4 over a single category cable up to 100 m (Cat6) and 1080p up to 150 m.
It's a complete control hub: responsive web interface, libCEC for normal TV-remote control, bi-directional IR, set-top-box IP control (Sky, TiVo/Virgin and more), Amazon Alexa voice control, and free real-time remote monitoring. ARC returns TV audio to the matrix for whole-home distribution.
This is the matrix chassis (3U), supplied with power supply and rack-mounting kit — HDBaseT receivers are sold separately (see the Kit for a bundle with receivers). Built in Britain; three-year warranty.
| Configuration | 8 × HDMI in → 8 × HDBaseT Class C+DSC out + 2 × mirrored HDMI out; audio matrix |
| Distance | 4K up to 100 m (Cat6) / 70 m (Cat5e); 1080p up to 150 m |
| Bandwidth | 18 Gbps (600 MHz) |
| Video | All 4K up to 4:4:4@60Hz, 4:2:2 60Hz HDR10, 1080p (+3D) |
| HDCP | HDCP 1.4 & 2.2 |
| Compression | DSC (Display Stream Compression) |
| Audio | Full audio matrix, ARC, audio breakout; all HDMI formats incl. Dolby Atmos, DTS-HD Master |
| Control | Web interface, libCEC, bi-directional IR, set-top-box IP control, Alexa, remote monitoring |
| Power | IEC C14, 100-240V |
| Dimensions | 440 × 132 × 316 mm (3U); 4.83 kg; brushed aluminium |
| In the box | neo:X chassis, power supply, rack-mounting kit (receivers not included) |
| Certifications | CE, FCC, RoHS; built in Britain |
