PULSE EIGHT

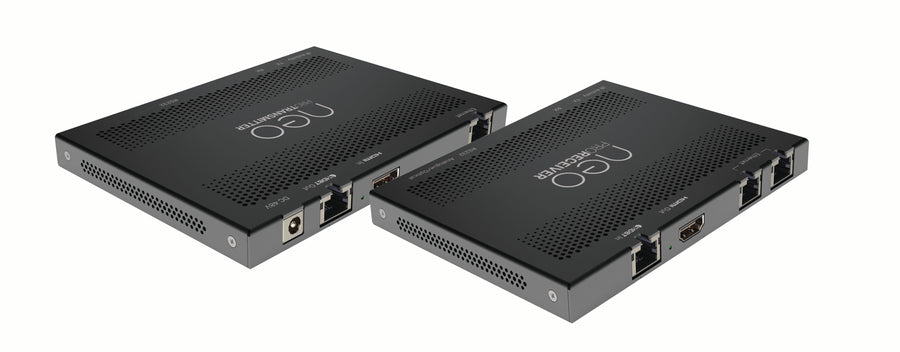

Pulse-Eight neo:Pro 100m HDMI Extender Set
P8-HDBT2-P-EXSET
RRP
$1,499.00
incl GST
Backorder
The Pulse-Eight neo:Pro is a mid-range HDBaseT extender set that sends uncompressed HDMI 2.0 video up to 4K/60Hz (4:2:0) across long cable runs with zero latency. It carries 4K signals up to 70 metres and 1080p up to 100 metres over a single Cat5e/6/7 cable, letting sources live in a central rack well away from the display.
Housed in an ultra-slim 13 mm enclosure, each unit wall-mounts neatly behind a screen or inside a cabinet. Power over HDBaseT (PoH) powers the receiver from the transmitter over the same cable, so there's no need for a separate supply at the display end.
Bi-directional IR and RS-232, HDMI-CEC, 10/100 Ethernet pass-through and HDCP 2.2 support make the neo:Pro a flexible signal backbone for residential and light-commercial installs. Supplied as a transmitter and receiver pair with IR cables, power supply and installation guide. Backed by a three-year manufacturer warranty.
| Maximum resolution | 4K/60Hz 4:2:0 |
| Distance (4K / 1080p) | Up to 70 m / up to 100 m over Cat5e/6/7 |
| Maximum bandwidth | 10.2 Gbps (300 MHz pixel clock) |
| Supported formats | 4K/60Hz 4:2:0, HDR10/24Hz, 1080p (+3D), 1080i, 720p |
| HDCP | HDCP 1.4 & 2.2 |
| HDBaseT class | Class C (transmitter & receiver) |
| Control | HDMI-CEC, bi-directional IR, bi-directional RS-232, 10/100 Ethernet pass-through |
| Audio Return Channel | HDMI ARC |
| Power | 48V @ 0.5A inlet (TX); Power over HDBaseT to RX. TX 7.3W / RX 8W |
| Dimensions (each) | 148 × 105 × 13 mm |
| Weight (each) | 0.16 kg |
| Operating temperature | 0 to +35°C |
| Certifications | UKCA, CE, FCC, RoHS |
| In the box | neo:Pro transmitter, neo:Pro PoH receiver, IR blaster cable pack, power supply, installation guide |
| Warranty | 3 years |
No compatibility information available for this product.
