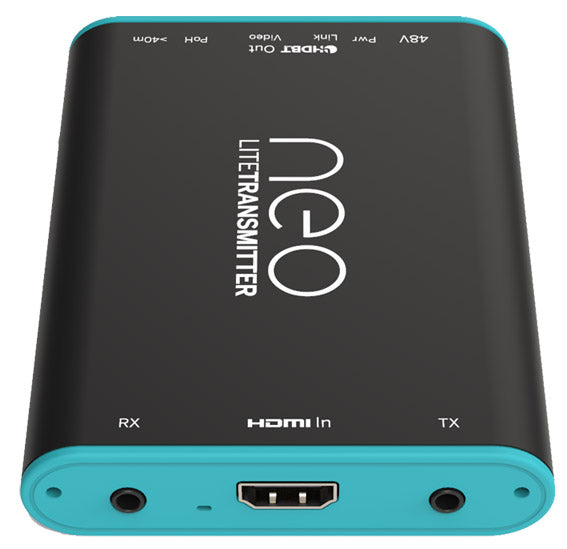

Pulse-Eight neo:Lite HDMI Transmitter (HDBaseT, 70m)
P8-HDBT-L-TX
RRP
$399.00
incl GST
Backorder
The transmitter half of the Pulse-Eight neo:Lite extender, available individually for custom configurations or as a replacement. It takes an HDMI source and sends it over a single Cat5e (or above) cable via HDBaseT Class B (Lite) — 4K up to 40 m and 1080p up to 70 m — to a neo:Lite receiver, with HDMI-CEC and bi-directional IR pass-through. Powers the remote receiver over the same cable (PoH).
| Role | HDBaseT transmitter (pairs with neo:Lite receiver) |
| Input | 1 × HDMI |
| Output | 1 × HDBaseT Class B (Lite) |
| Distance | 4K up to 40 m / 1080p up to 70 m over Cat5e+ |
| Control | HDMI-CEC, bi-directional IR |
| Power | 48V; supplies PoH to the receiver |
No downloads available for this product.
No compatibility information available for this product.
