PULSE EIGHT

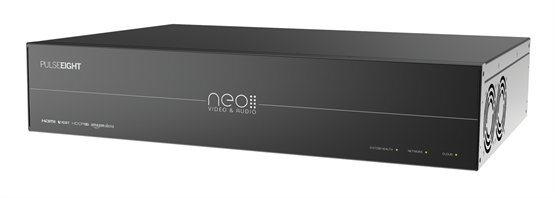

Pulse-Eight neo:8a 8×10 HDBaseT Matrix with Audio Breakout (Kit)
P8-HDBTLFFMN810A-KT
RRP
$9,999.00
incl GST
Backorder
The neo:8a is Pulse-Eight's flagship fixed-format HDBaseT matrix with dedicated audio breakout from every HDMI source. It routes 8 HDMI inputs to 8 HDBaseT Class B (Lite) zones plus 2 local HDMI outputs, extending 4K to 40 m and 1080p to 70 m, with an optical/coax audio breakout per source for pairing with the ProAudio and ProAmp range. Full HDMI-CEC, contextual IR, Alexa, a responsive web interface and free cloud monitoring are built in. Supplied as a complete kit with 8 neo:Lite PoH receivers, IR blaster pack, rack kit and power supply.
| Configuration | 8 × HDMI in → 8 × HDBaseT Class B (Lite) out + 2 × HDMI out |
| Audio breakout | 8 × audio breakout zones (optical & digital coax) |
| Distance | 4K up to 40 m / 1080p up to 70 m over Cat5e+ |
| Bandwidth / clock | 10.2 Gbps; 340MHz pixel clock |
| Max resolution | 4K@60Hz 4:2:0; colour 4K 8-bit / 1080p 12-bit |
| HDCP | HDCP 1.4, 2.2 & 2.3 |
| Control | Bi-directional IR, full HDMI-CEC, Alexa, web + Android app, automatic EDID; Control4, Crestron, Crestron Home, ELAN, RTI, Savant & URC drivers |
| Power over HDBaseT | 8 × neo:Lite PoH receivers included |
| Power | IEC C14, 100-240V 4.0/2.0A; max 2A @ 240V |
| Dimensions | 44 × 9 × 30.5 cm (2U); 3.78 kg (matrix); anodised brushed aluminium |
| Operating range | 0 to +35°C; 5-90% RH non-condensing |
| Safety & emissions | UKCA, CE, FCC, RoHS; made in Great Britain |
