PULSE EIGHT

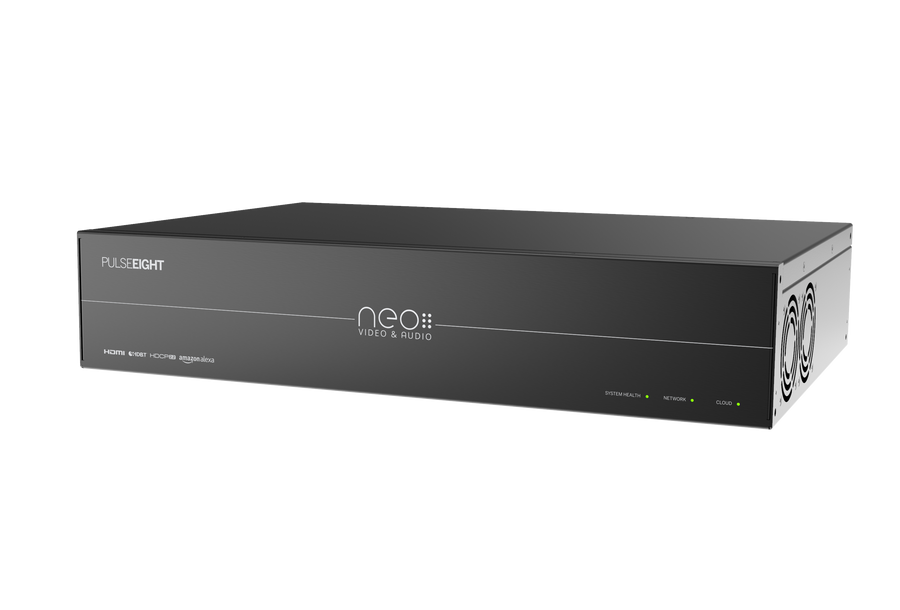

Pulse-Eight neo:6a 6×8 HDBaseT Matrix with Audio Breakout (Chassis)
P8-HDBT-L-FFMN68A
RRP
$5,999.00
incl GST
Backorder
The neo:6a is a 6×8 HDBaseT matrix with dedicated audio breakout from every HDMI source — the ideal heart of a multi-room video and audio system. It routes 6 HDMI inputs to 6 HDBaseT Class B (Lite) zones plus 2 local HDMI outputs, extending 4K to 40 m and 1080p to 70 m. Each source has an optical/coax audio breakout for pairing with the ProAudio and ProAmp range. Full HDMI-CEC, contextual IR, Alexa, a responsive web interface and free cloud monitoring are built in. Supplied as the matrix chassis only (receivers sold separately).
| Configuration | 6 × HDMI in → 6 × HDBaseT Class B (Lite) out + 2 × HDMI out |
| Audio breakout | 6 × source audio breakouts (digital coax / optical) |
| Distance | 4K up to 40 m / 1080p up to 70 m over Cat5e+ |
| Bandwidth / clock | 10.2 Gbps; 340MHz TMDS |
| Max resolution | 4K@60Hz 4:2:0, HDR10@24Hz; colour 4K 8-bit / 1080p 12-bit |
| HDCP | HDCP 1.4 & 2.2 |
| Audio formats | LPCM up to 7.1, Dolby Atmos up to 9.1.2, Dolby TrueHD, DTS-HD Master |
| Control | Bi-directional IR, full HDMI-CEC, set-top-box IP control, Alexa, web interface, automatic EDID |
| Power | IEC C14, 100-240V 4.0/2.0A; max 2A @ 240V |
| Protection | ESD ±8kV air / ±4kV contact; EFT & surge protected |
| Dimensions | 43 × 8.9 × 29.5 cm; 6.10 kg; powder-coated steel |
| Operating range | 0 to +35°C; 5-90% RH non-condensing |
| Certification | CE, FCC, RoHS; made in Great Britain; 3-year warranty |
