PULSE EIGHT

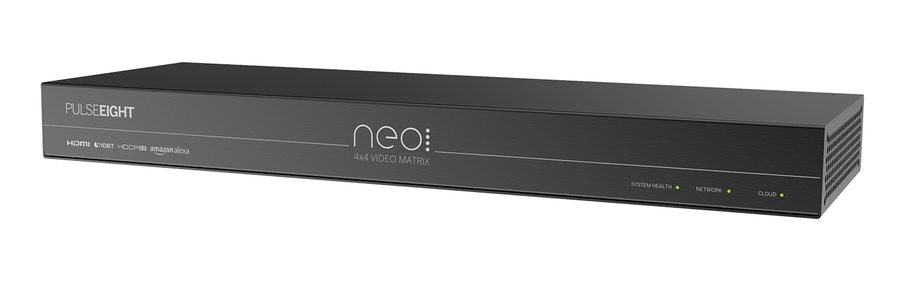

Pulse-Eight neo:4 Professional 4×4 HDBaseT Matrix
P8-HDBT-L-FFMS44-22
RRP
$3,999.00
incl GST
Backorder
The Pulse-Eight neo:4 Professional is a 4×4 HDBaseT matrix that routes any of four HDMI sources to four HDBaseT zones (up to 70 m each over Cat5e or above to neo:Lite receivers), plus two mirrored HDMI outputs for local displays. Power over HDBaseT feeds the receivers down the same cable.
At its core is MatrixOS, Pulse-Eight's 340MHz video engine, driving UltraHD 4K, 1080p and 3D with dynamic EDID management for a reliable picture on every screen. Control is effortless: a responsive web interface (built on a full REST API), Contextual IR (just four buttons — one per source), bi-directional HDMI-CEC so a normal TV remote can switch sources, RS-232 and IP. Every matrix also keeps in touch with Pulse-Eight's free cloud monitoring for remote diagnostics, and an Alexa skill adds voice control.
Rack-mountable, UK-designed, and backed by a three-year warranty.
| Configuration | 4 × HDMI inputs → 4 × HDBaseT outputs + 2 × mirrored HDMI outputs |
| Video engine | MatrixOS, 340MHz processing |
| Distance | Up to 70 m per HDBaseT zone over Cat5e or above |
| Supported resolutions | 720p, 1080i, 1080p (+3D), 4K/30 4:4:4, 4K/50-60 4:2:0 |
| HDCP | HDCP 1.4 & 2.2 |
| Audio | All HDMI formats incl. Dolby TrueHD, Atmos, DTS-HD Master |
| Control | Web interface (REST API), Contextual IR, HDMI-CEC, RS-232, IP, Alexa |
| Power | 48V @ 2.5A (120W); PoH to receivers |
| Dimensions | 430 × 45 × 140 mm; 2.05 kg; rack-mountable |
| Certifications | CE, FCC, RoHS |
No compatibility information available for this product.
