PULSE EIGHT

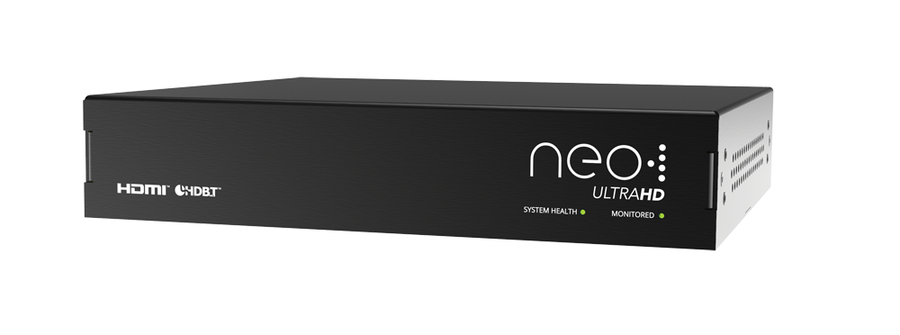

Pulse-Eight neo 1×4 HDBaseT Splitter Kit (incl. 4 Receivers)
P8-HDBT-L-SP4-KIT
RRP
$3,399.00
incl GST
Backorder
The complete Pulse-Eight neo 1×4 HDBaseT splitter solution — the splitter plus four neo:Lite Power-over-HDBaseT receivers, ready to install. Distribute a single HDMI source to four displays, each up to 70 m away over a single Cat5e (or above) cable, with the receivers powered down the same cable (PoH).
It passes all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio, with automatic EDID management, web-based management and remote monitoring, per-output LED indicators and optional CEC. Compact and rack-mountable.
Kit includes the splitter, 4× neo:Lite receivers, power supply and rack-mounting kit.
| Configuration | 1 × HDMI input → 4 × HDBaseT outputs (Class B / Lite) |
| Distance | Up to 70 m over Cat5e or above |
| Supported resolutions | 720p, 1080i, 1080p (+3D), 4K/30 4:4:4, 4K/50-60 4:2:0 |
| HDCP | HDCP 1.4 (4K/60 4:2:0 pass-through) |
| Audio | All HDMI formats incl. Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master |
| Power | 48V @ 1.3A (60W); PoH to receivers |
| Management | Automatic EDID, web management + remote monitoring, one-way IR |
| Dimensions | Splitter 220 × 45 × 190 mm; rack-mountable |
| In the box | Splitter, 4× neo:Lite receivers, power supply, rack-mounting kit |
| Certifications | CE, FCC, RoHS |
No compatibility information available for this product.
