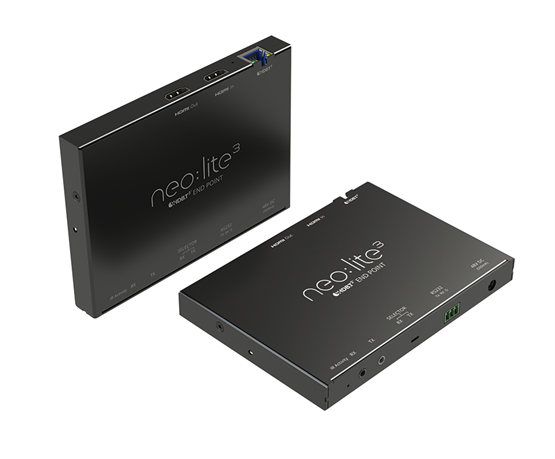

Pulse-Eight neo:Lite3 HDBaseT3 18Gbps HDMI Extender Set
P8-HDBT3-L-EXSET
RRP
$1,999.00
incl GST
Backorder
The neo:Lite3 is an HDBaseT3 endpoint extender set that sends uncompressed 18Gbps, 4K@60Hz 4:4:4 video up to 40 m over a single Cat6A cable. It ships as two switchable end points — each unit works as either transmitter or receiver — with automatic power switching, so a single SKU covers both ends of any link. Bi-directional IR, HDMI-CEC and RS-232 control pass through alongside the video, and Power over HDBaseT means only one end needs mains power.
| Endpoints | 2 × neo:Lite3 end points, switchable transmitter / receiver |
| Bandwidth | 18 Gbps (uncompressed) |
| Max resolution | 4K@60Hz 4:4:4; up to 4K 4:2:2 10-bit HDR |
| Distance | Up to 40 m over Cat6A or higher |
| HDCP | HDCP 1.4 & 2.2 |
| Control | Bi-directional IR, HDMI-CEC, RS-232 (Phoenix port) |
| Power | Power over HDBaseT with automatic power switching |
| Origin | Built in Britain by Pulse-Eight |
