Professional and Aggressive Venting & Spot Cooler (Newly Redesigned)
This unit is appropriate for high demand venting in cabinetry, aggressive spot cooling, and thru wall venting

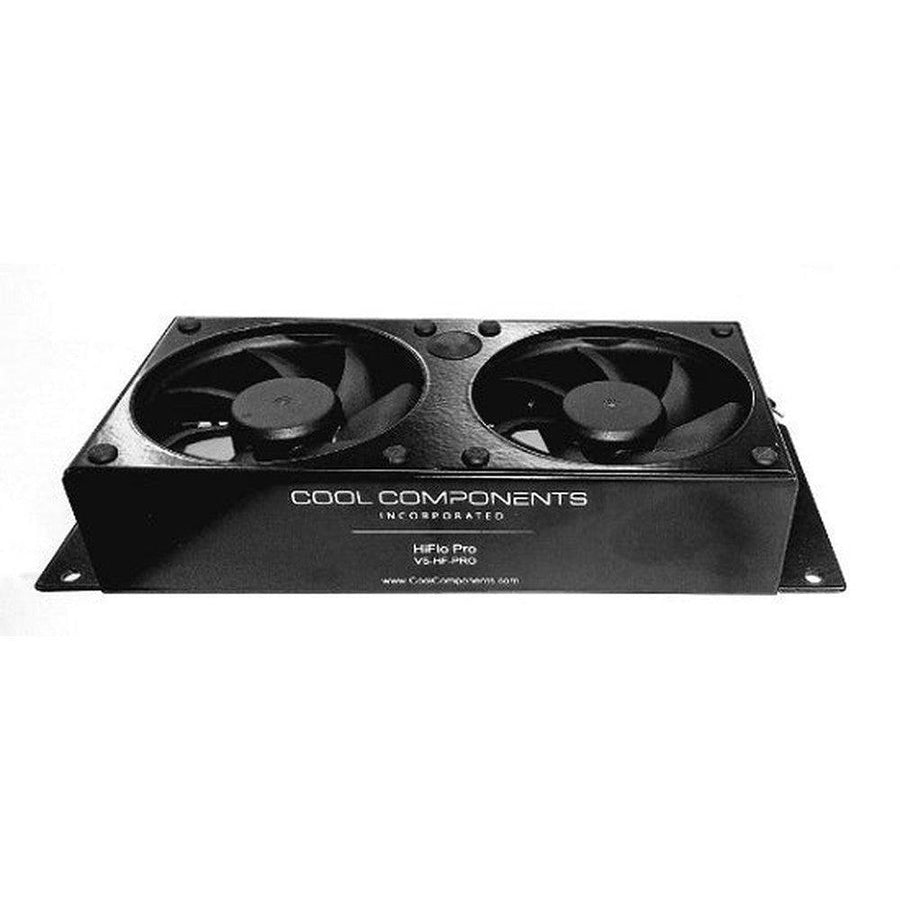

This unit is ideal for extreme venting of cabinets and enclosures, for very aggressive spot cooling, and for low to mid level venting of closets and rooms. The new design greatly simplifies installation and aesthetic appeal since it now mates with sleek insert and never flush grills. It features two large, top-quality magnetic bearing fans for higher airflow, low noise and long life. Traditional ball bearing fans get louder as time goes on while magnetic bearing fans remain silent throughout the lifecycle. The fan unit can be configured to pull air out of a cabinet (the default & recommended configuration) or push air into the cabinet depending on the application. The new design also makes it perfect for very aggressive spot cooling. The fans are mounted using a special silicone vibration dampening system which eliminates noise caused by fan vibration and also facilitates easily changing the direction of the airflow. The unit is powered with DC voltage and when used with our Universal Power Supplies, can be run silently or more aggressively depending on the application.
For Reference and In Order of Aggressiveness (Airflow):
For Spot/Component Cooling : Spot Cooler/HiFlo Lite Pro > HiFlo Pro > Component Units
Cabinet Venting : Slim Vent > Cabinet Vent > Aesthetic Series Cabinet Vent > HiFlo Lite Pro > HiFlo Pro
Closet/Room Venting : HiFlo Pro > Ceiling Vent System > Inline Duct Fan Systems
Installation (for venting applications): One of the best features of the unit is it's ease of installation. Instead of having to cut a rectangular opening risking damage and inaccurate cuts using a jig saw, simply drill a 4" hole using a round hole saw for the grill. The fan unit is installed from the inside and is simply mounted over the hole. The screwless grill simply presses into the hole for a super sleek look.
Purchasing Options - This unit can be purchased by itself or in packages which include the fan unit, grill, and power supply. The available grill color options are Black, White, Almond, Gray and Brown. Wood grills options are also available. The unit is also available in various packages as well. While we are now promoting the screw-less and lower profile inset round grills, the unit can also be used with our traditional surface mount grills. Also available are duct boxes for remote venting options.
Harsh Environment Option - This unit is also available with a fan engineered with an industry leading IP68 rating for harsh environments which is ideal for outside, wet, humid or especially dirty and dusty areas. The units are also effective in high altitudes and in extreme temperatures. It should be noted that harsh environment does not mean better quality or longevity, just enhanced engineering and production to protect against these environmental situations. In practical terms this means that unless truly require the added protection, there is no reason to purchase harsh environment fans.
High Velocity Option - This unit by design is intended to be both effective and quiet at the same time. This balance is critical in residential applications, in board rooms, lecterns and various other applications but often times and especially in the commercial and industrial environments noise is not as much of a concern as airflow. For this reason we offer with unit with a High Velocity fan which moves considerably more air.
Features
- Professional Design & Quality
- Improved Aesthetics
- Designed to Lifetime with Basic Maintenance
- Quick and Easy Installation
- Quiet & Efficient Operation
- Aggressively Circulates Air in a Cabinet or Enclosure
- For Venting or Spot Cooling Applications
- Multi Purpose for Venting Enclosures, Rooms & Closets, and Spot Cooling
- Uses Variable Voltage Power Supply to Adjust Fan Speed based on the Application
- Compatible with the Temperature Controllers (TC- BSC, TC-ALT & TC-ASC)
- Available with Harsh Environment Fans (IP68 rated) & Higher Velocity Fans
- Various Grill Types Available:
Round Grills: Plastic: Black, White, Almond, Brown & Gray
Wood: Maple & Oak (Unfinished)
Rectangular : Plastic:Black, White, Khaki & Tan
Wood : Maple & Oak (Unfinished)
General Specifications
Dimensions: Fan Assembly : L - 5” x H - 4 1/2” x D - 1 1/8” (12.7 x 11.4 x 3cm)
Grill (Round) : 4 3/8" (11cm)
Grill (Rectangular) : L - 10 1/2” x H - 5” (26 x 12.6cm)
Req'd Hole Size : 4" Round
Cooling System : 2 - 92mm Magnetic Bearing Fans (Est. 70,000 hrs)
Air Flow : Up To 78* CFM / High Velocity 102* CFM
Noise : Silent to ~28 dba
* CFM ratings are often times misrepresented so do not be fooled by other companies claiming high cfm while still being silent...
Power Specifications
Multiple Units can be powered and controlled with a single controller and power supply
Connection : 2-Pin FastWire Power System (Ensure proper polarity - Tip to +)
Voltage : 5 to 9V DC for Normal Operation or 9-13V for More Aggressive Cooling
Current : 174mA at 12V DC / HV 322mA
