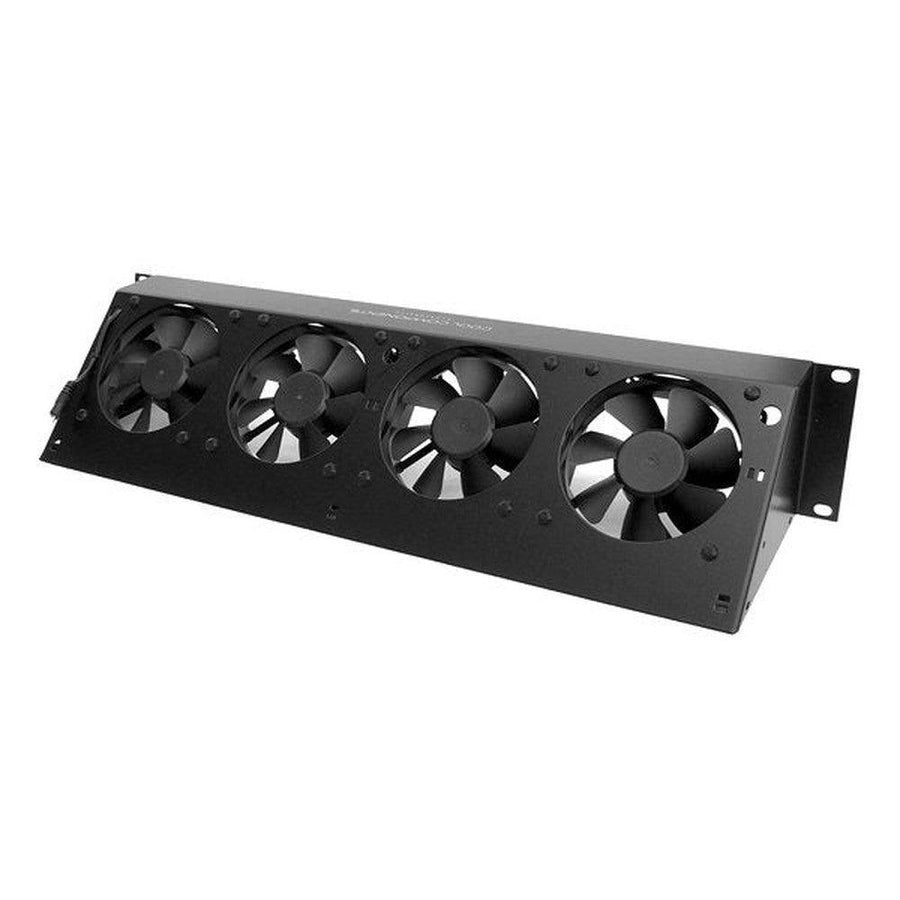

Cool Components Universal Cooler

For Very Aggressive Cooling in Equipment Racks

This is a very aggressive, universal cooling and venting unit. This unit can be used as a spot cooler or for various rack applications as it allows for advanced and unique applications. It features four top-quality fans that are mounted using special mounting hardware which eliminates noise caused by normal fan vibrations. The unit operates on DC voltage and by adjusting the voltage, the unit can be run silently or more aggressively depending on the application. The fans can also be reversed and the unit oriented to blow air upward or downward. This unit is ideal for a variety of applications including rack mounting, mounting inside cabinets, behind recessed TVs, etc.

This unit does not include a power supply

Features

• Professionally Engineered To Quietly & Aggressively Cool in a Variety of Applications
• Universal Rack Applications: Intake or Exhaust Racks, Spot Cool, Attach to Front or Rear Rails • Can be Installed Behind Any Standard 2RU Faceplate
• Less than 3.5 in Height and only 2RUs
• Specialty Fans: 4 Specially Manufactured 92mm Magnetic Levitation Fans for Longer Life
• Fans Mounted Using Specialty Mounting System to Absorb Fan Vibration for Quieter Operation
• Fans Easily Reversible for Directing Air Up or Down Depending on the Application
• Uses Variable Voltage Power Supply to Adjust Fan Speed
• Compatible with all Cool Components Temperature Controllers

Home Theater Recommended Practice: Equipment cooling and ventilation

Recommendations:

Ambient Room Conditions

• Temperature: 20◦ - 23◦C

Equipment Conditions

• Operating Temperature:≤ 29◦C

• Fresh Air Inlet to Rack/Cabinet: 24◦C

Note A; 99.6% of all power (electricity) going into a rack is converted to heat

Note B; for approximately every 5◦C above 29◦C, reliability of equipment drops 50%

General Specifications

Dimensions:                   W - 19" x H - 3.5" x D - 5" (48cm x 9 x 13)

Construction:                  Heavy Gauge Steel (Painted Black)

Cooling System:             4 Brushless 92mm Magnetic Levitation Fans (Est. 50,000 hrs.)

Air Flow:                        ~100W-CFM-260M-CFM

Noise:                            Dependent on Power Setting (Can be run quietly)

Power Specifications

Power Connection:          2-Pin FastWire Power System (Ensure Proper Polarity - Tip to +)

Voltage:                         7 to 9V DC for Normal Operation or 9 to 12V for More Aggressive Cooling

Current:                         800mA at 12V DC
