AUTONOMIC CONTROLS

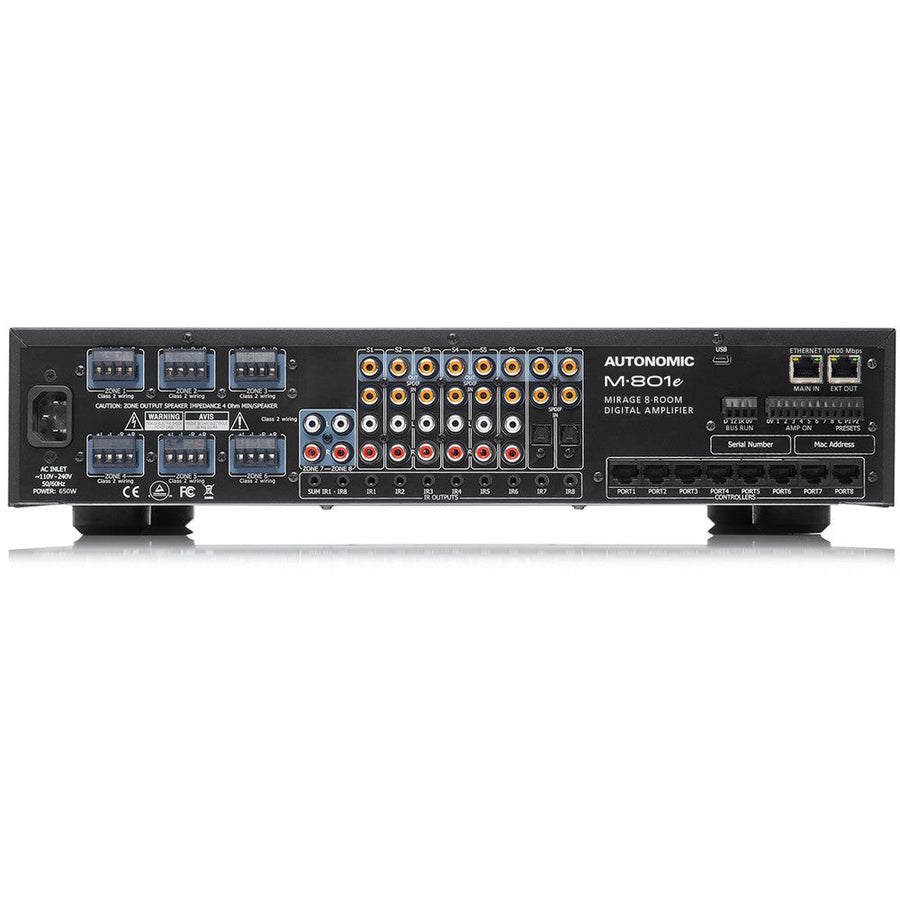

Autonomic Mirage M-801e. Multi-Room Digital Amplifier
AC-M-801E
RRP
$7,995.00
incl GST
Backorder
The M-801e is an eight-zone Mirage digital amplifier (six amplified zones plus two pre-outs) using cool-running Class D technology, delivering 50 watts per channel with a 2.4-inch colour touch-panel display for menu-guided control. Fully IP addressable, it supports coax or Toslink digital audio on every source input, works standalone or alongside a Mirage music server, and bridges with other Mirage amplifiers (including eAudioCast streams) to scale up to 96 zones.
| Configuration | 8-zone digital amplifier (6 amplified + 2 pre-out); bridgeable to 96 zones |
| Rated power (FTC) | 50W per channel, all channels, 8Ω loads |
| THD | 0.1% (40W, 8Ω) |
| Speaker impedance | 4Ω - 8Ω |
| Source inputs | Coax or Toslink digital on every source input; input sensitivity 0.72V / 22kΩ unbalanced; coax 0.5V / 75Ω |
| Pre-amp output (Z7/Z8) | +16dB / 470Ω |
| Frequency response | 20Hz - 20kHz / -3dB (8Ω) |
| Tone control | ±12dB @ 100Hz (bass); ±12dB @ 10kHz (treble) |
| S/N ratio | 100dB |
| Display | 2.4" colour LCD touch panel for menu-guided control & programming |
| Interface | 10× IR output (3.5mm), Ethernet 100Base-T, RS-232 (DB9, 9600), USB mini-B, eAudioCast network audio |
| Control | Fully IP addressable; Crestron, AMX, Control4, RTI and others |
| Power | 110-240V AC 50/60Hz; 320W consumption; 6W standby |
| Dimensions | 4"H × 17"W × 15"D (10.2 × 43.2 × 38.1 cm); 16.3 lb (7.4 kg) |
| Warranty | 2-year limited warranty (Autonomic Controls) |
No compatibility information available for this product.
