AUTONOMIC CONTROLS

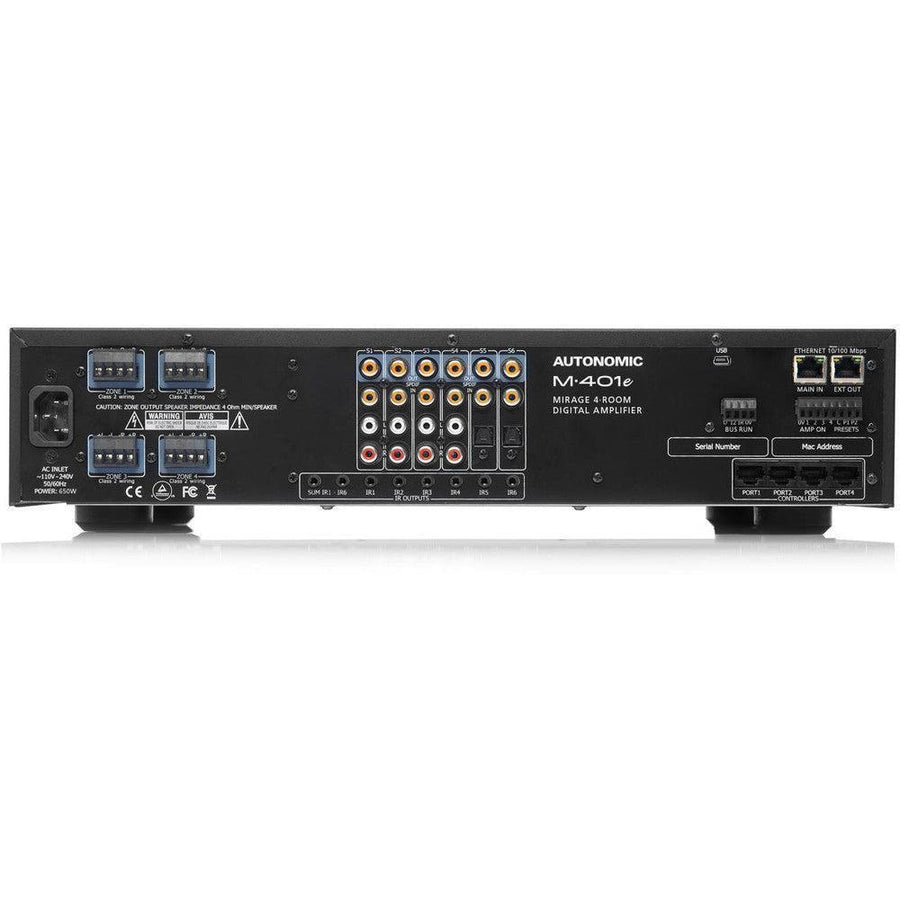

Autonomic Mirage M-401e 6 Source, 4 Zone Multiroom Digital Amplifier
AC-M-401E
RRP
$4,495.00
incl GST
In stock
The M-401e is a six-source, four-zone (eight-channel) Mirage digital amplifier using cool-running Class D technology, delivering 50 watts per channel. Fully IP addressable, it supports coax or Toslink digital audio on every source input to keep material in the digital domain to the final amplification stage. It works as a standalone matrix amplifier or as the perfect companion to a Mirage music server, and bridges with other Mirage amplifiers (including eAudioCast streams) to scale up to 96 zones.
| Configuration | 6-source, 4-zone (8-channel) multi-room digital amplifier; bridgeable to 96 zones |
| Rated power (FTC) | 50W per channel, all channels, 8Ω loads |
| THD | 0.1% (40W, 8Ω) |
| Speaker impedance | 4Ω - 8Ω |
| Source inputs | Coax or Toslink digital on every source input; input sensitivity 0.72V / 22kΩ unbalanced; coax 0.5V / 75Ω |
| Pre-amp output (Z7/Z8) | +16dB / 470Ω |
| Frequency response | 20Hz - 20kHz / -3dB (8Ω) |
| Tone control | ±12dB @ 100Hz (bass); ±12dB @ 10kHz (treble) |
| S/N ratio | 100dB |
| Interface | 8× IR output (3.5mm), Ethernet 100Base-T, RS-232 (DB9, 9600), USB mini-B, eAudioCast network audio |
| Control | Fully IP addressable; Crestron, AMX, Control4, RTI and others |
| Power | 110-240V AC 50/60Hz; 320W consumption; 4W standby |
| Dimensions | 4"H × 17"W × 15"D (10.2 × 43.2 × 38.1 cm); 15.8 lb (7.2 kg) |
| Warranty | 2-year limited warranty (Autonomic Controls) |
No compatibility information available for this product.
