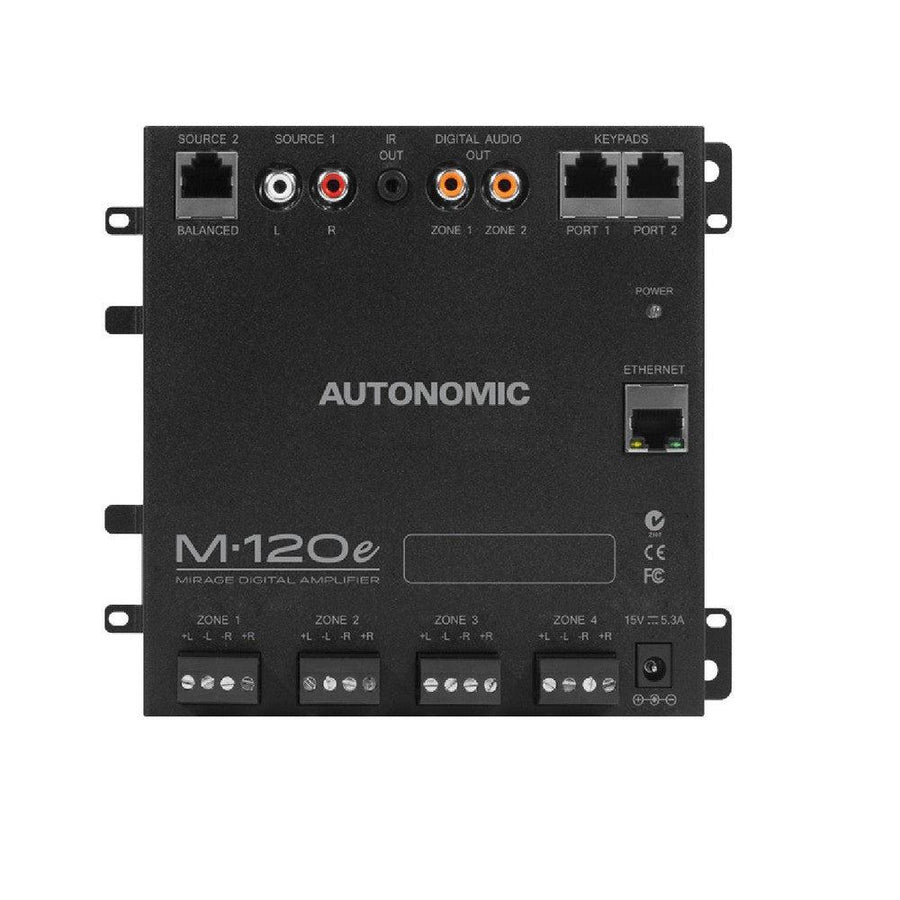

The M-120e is a compact eSeries Mirage digital amplifier delivering four rooms of audio at 30 watts per zone in a small, flexible form factor that mounts in a structured-wiring enclosure or on a wall. It accepts two local source inputs and streams over a single Cat-5 connection, outputting four discrete programs from its own inputs, remote M-120e amplifiers, or eSeries media streamers. Part of the eAudioCast ecosystem, it can be combined with other Mirage amplifiers to scale up to 96 zones of high-resolution audio.
| Configuration | 4-zone compact eSeries digital amplifier; 2 local source inputs; expandable to 96 zones |
| Rated power | 30W per zone (15W per channel, 8Ω loads) |
| THD | <0.1% (10W, 8Ω) |
| Speaker impedance (Z1-Z4) | 4Ω - 8Ω |
| Inputs / outputs | 2 analog source inputs; 2 digital PCM outputs (zones 1 & 2, 75Ω 0.5V RMS); 4 powered speaker channels |
| Input sensitivity | 0.72V / 22kΩ (unbalanced); 0.72V / 680Ω (balanced) |
| Frequency response | 20Hz - 20kHz |
| Tone control | ±12dB @ 100Hz (bass); ±12dB @ 10kHz (treble) |
| S/N ratio | 96dB (IHA-A, 1V input / unbalanced) |
| Per-zone adjustments | Bass, treble, balance, loudness, audio delay (up to 600ms), zone linking |
| High-res audio | 24-bit / 192kHz via eAudioCast over Ethernet |
| Interface | 1× RJ45 10/100; 2× KP-6 keypad ports; 1× IR out (3.5mm, 25mA) |
| Power | 100-240V AC; external DC 15V @ 5.3A; 79.5W consumption |
| Dimensions | 6.5" × 5.8" × 1.4" (165 × 147 × 35 mm); 0.85 kg |
| Mounting | 4 brackets (structured-wire cabinet / wall mount) |
| Warranty | 2-year limited warranty (Autonomic Controls) |
