CC-RK-SC-4FN

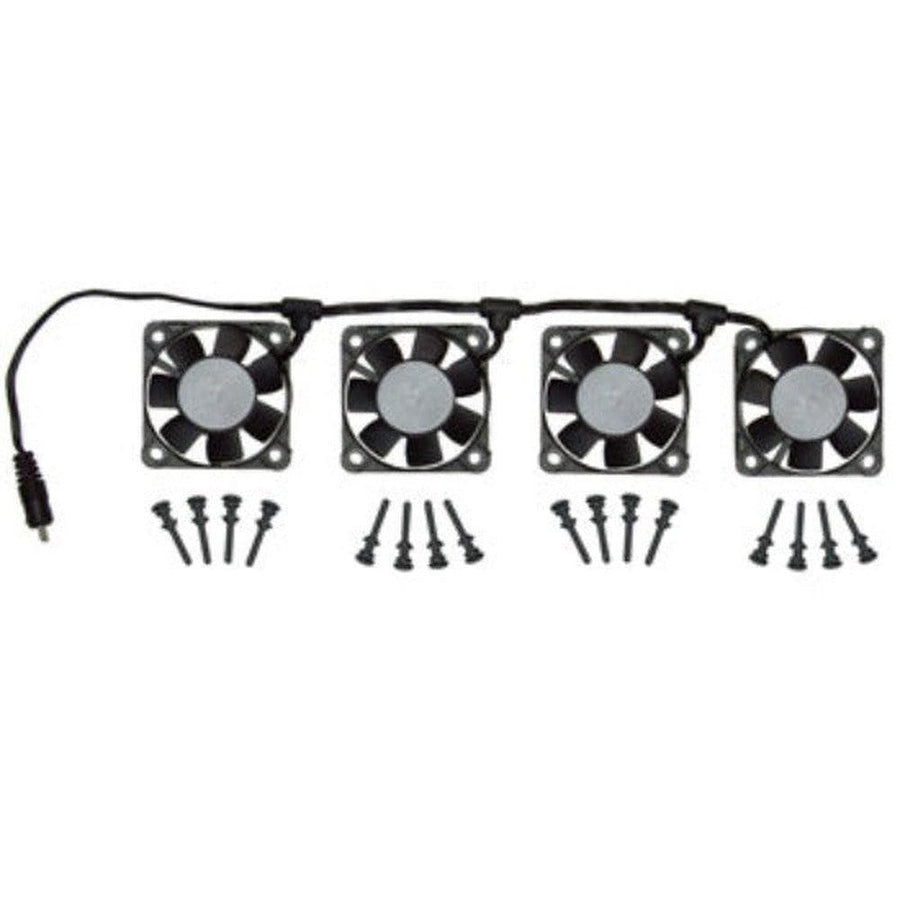

This is a kit to add additional cooling to the Cool Racks. This includes a 4-Fan Assembly and mounting hardware for the fans.
When ordering, ensure to order additional accessories such as power supply and/or cables. These assemblies can be powered with existing assemblies or powered and controlled separately based on system requirements. When configuring the cooling systems, consider which components will generate always heat (cable and satellite receivers and DVRs) and other components that will only generate heat when in use. Also consider how air will flow in the rack. While most components may be off, heat can still collect in the top of the rack from those 'always on' components.
This kit can also be used as replacement fans for the 3RU Cool Shelf (RK-CS-3) and the 4 Fan Rack Side Cooler (RK-SC-4FN).
Features
Home Theater Recommended Practice: Equipment cooling and ventilation
Recommendations:
Ambient Room Conditions
• Temperature: 20◦ - 23◦C
Equipment Conditions
• Operating Temperature:≤ 29◦C
• Fresh Air Inlet to Rack/Cabinet: 24◦C
Note A; 99.6% of all power (electricity) going into a rack is converted to heat
Note B; for approximately every 5◦C above 29◦C, reliability of equipment drops 50%
General Specifications
Fan System: 4 x 50mm Brushless Magnetic Levitation DC Fans (Est. Life 50,000 hours)
Air Flow: 32-40 CFM
Power Specifications
Power Supply: Use with Variable Voltage Power Supply (Not Included)
Voltage: 7-9V DC for Normal Operation or 9-12V for More Aggressive Cooling
Current: 180mA at 12V DC
