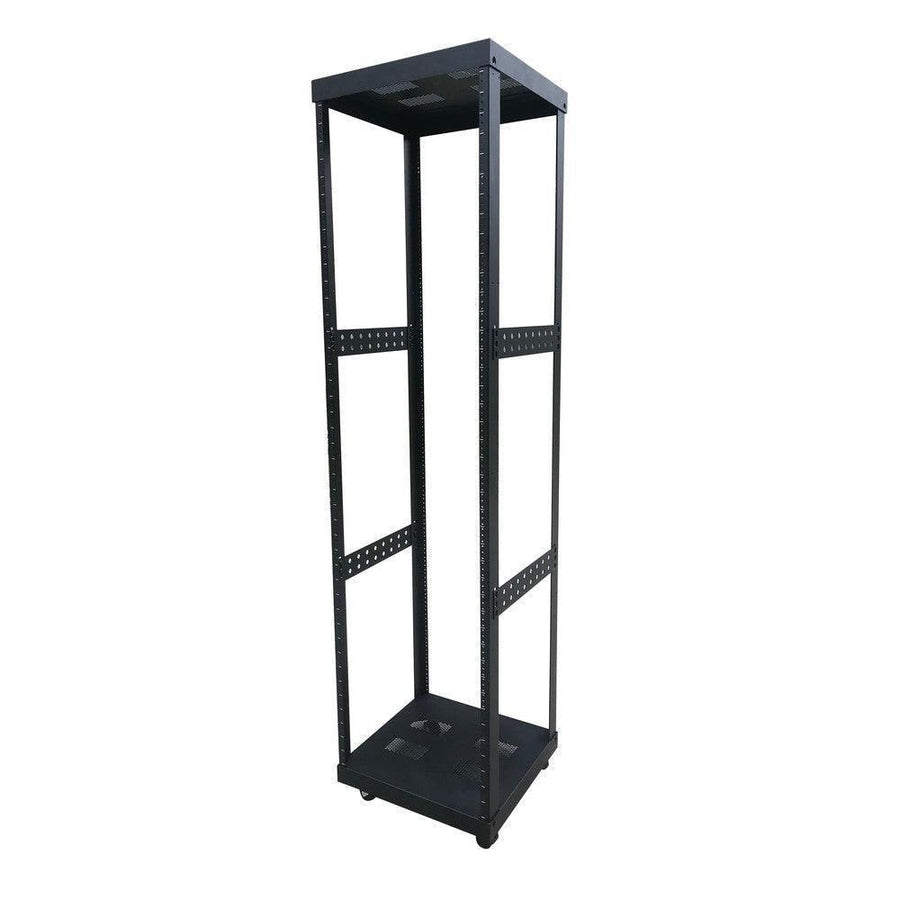

Techmount 42RU Rack with Casters

Compact, narrow-profile open rack frame built for AV installations where space is at a premium. The Techmount design maximises usable space, assembles quickly, and is made from 2mm cold-pressed, powder-coated steel for a tough, clean finish. Ships flat-packed.

Specifications

•      Capacity: 42RU

•      Footprint: 508mm W × 508mm D

•      Overall height: 2076mm including casters (±10mm)

•      Construction: 2mm cold-pressed, powder-coated steel; 1.2mm steel top and bottom panels

•      Rails: #10-32 tapped mounting holes on 2mm vertical rails, front and back; RU-marked for easy shelf placement; can be cut down to a custom height

•      Casters: 4 included (2 braked)

•      Ventilation: perforated top and bottom panels

•      Cable management: apertures in the side channels; rubber knock-out bungs in the top panel

•      Bottom plate: lip-free, so it doubles as a shelf

•      Temperature display: punch-out in the top panel (display sold separately)

•      In the box: top and bottom panels, 4 casters, side support channels, and a hardware kit (40× 8mm truss-head self-guiding #10-32 screws, 16 panel nuts, 16 caster nuts and bolts)

Ideal for: space-constrained AV and equipment racks where a small footprint and fast assembly matter.
