Overview
This unit is designed for aggressively venting cabinets and enclosures. It is fully self-contained and features two high-quality brushless fans that deliver significant airflow, low noise, and long operational life.
The fan assembly can be configured to either pull air out of a cabinet (default) or push air into it, depending on the installation requirements. The fans are mounted using a vibration-damping system that eliminates noise caused by fan movement and also allows quick reversal of airflow direction.
The unit operates on DC voltage and, when paired with our Universal Power Supplies, can run completely silent or provide aggressive airflow as needed.
Features
- Quiet and efficient operation
- Quick and easy installation
- Complete package includes fan unit, grill, and power supply
- Aggressively circulates air in a cabinet or enclosure
- Variable-voltage power supply allows fan speed adjustment based on application
- Compatible with temperature controllers for advanced automated control (TC-BSC & TC-AC)
General Specifications
-
Dimensions (Fan Unit): 10 1/8” (L) × 4 7/8” (H) × 1 5/8” (D)
-

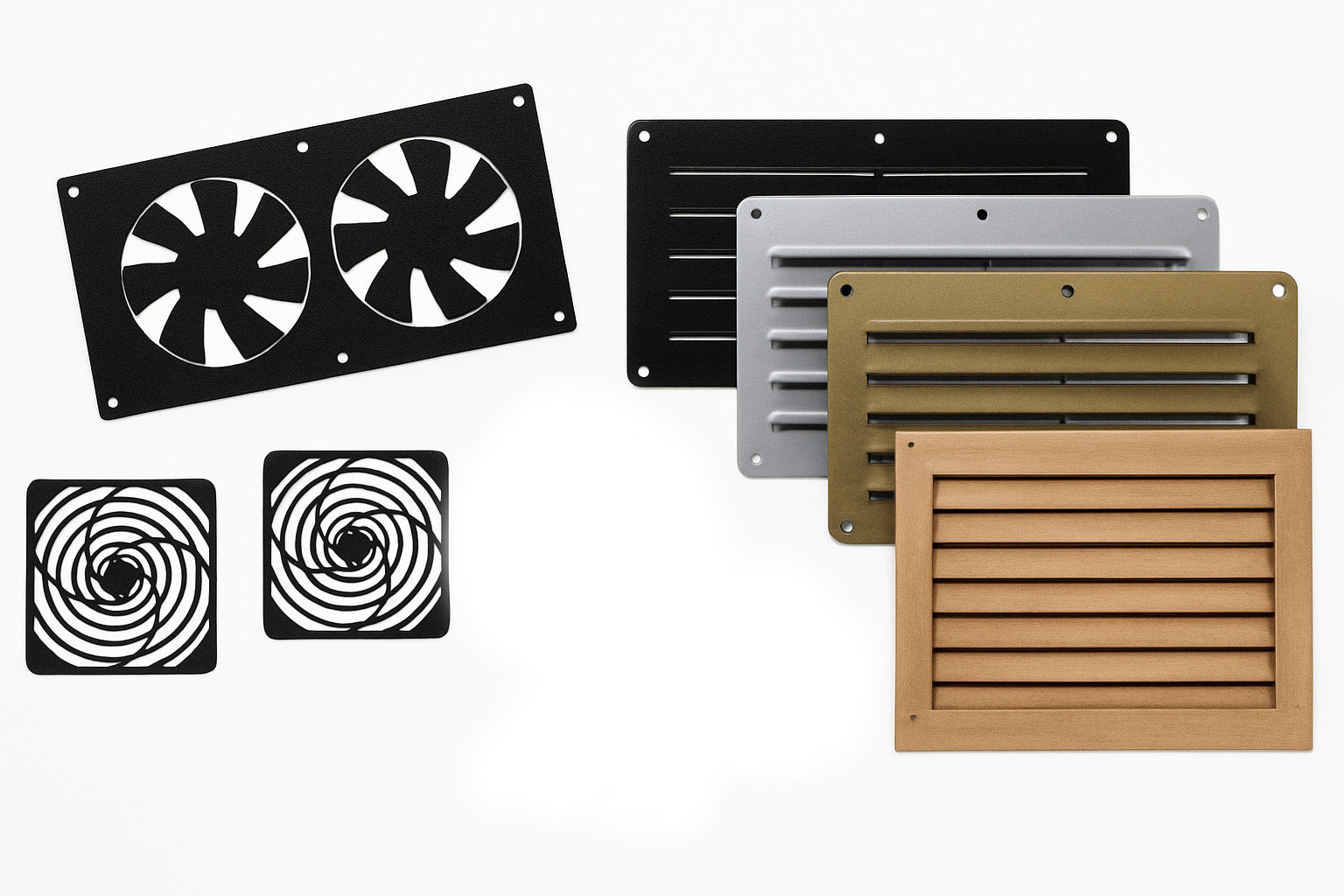

Construction: PVC grill available in Black, White, or Tan
-
Fan System: Two 92mm brushless levitation fans (estimated 50,000-hour lifespan)
-
Air Flow: Up to 130 CFM
-
Noise Level: Silent to approximately 50 dBA
-
Required Opening Size: 3 3/4” × 7 7/8”
Power Specifications
-
Included Power Supply: PS-300 (use PS-800 to power two units)
-
Connection: 2-pin FastWire power system (ensure correct polarity — tip to +)
-
Voltage: 7 to 12V DC
-
Current Draw: 275 mA at 12V DC
